Future prospects of structural studies to advance our understanding of phage biology

Bacteriophages, being the most abundant biological entities on the Earth, play a major role in regulating populations of bacteria and thus influence the evolution and stability of ecosystems. Phage infections of pathogenic bacteria can both exacerbate and alleviate the severity of the disease. The structural characterisations of phage particles and individual proteins have enabled the understanding of many aspects of phage biology. Due to methodological limitations, most of the structures were determined from purified samples in vitro. However, studies performed outside the cellular context cannot capture the complex and dynamic interactions of the macromolecules that are required for their biological functions. Current developments in structural biology, in particular cryo-electron microscopy, allow in situ high-resolution studies of phage-infected cells. Here we discuss open questions in phage biology that could be addressed by structural biology techniques and their potential to enable the use of tailed phages in industrial applications and human therapy.

Bacteriophages are a diverse group of viruses that infect bacteria. Bacteriophages are research models for molecular biology and have the potential to be used in modern biotechnology and phage therapy. After ejecting their genome into a cell, bacteriophages can establish two types of infection. The lytic cycle leads to the production of virion progeny and cell death, whereas in lysogenic infection the phage genome integrates into the bacterial one and replicates when the bacterium divides. Knowledge of the high-resolution structures of phage particles and their assembly intermediates has played an important role in our understanding of phage attachment to receptors, genome ejection, virion assembly and genome packaging. Furthermore, the structures of non-structural proteins and their complexes have explained the mechanisms of the lytic-lysogeny switch, genome transcription and replication, and the degradation of the cell envelope. However, nearly all of the structural studies performed to date were limited to analyses of purified macromolecular samples in vitro. In contrast, phage macromolecules perform their functions in vivo by interacting with other phage or cellular components. Current technological developments in the cryo-preservation of cells and cryo-electron tomography (cryo-ET) have enabled structural studies of replicating phages in bacteria. These reports described the ultrastructure of bacteriophages penetrating the cell wall of Gram-negative and Gram-positive bacteria, the formation of a nucleus-like structure during phage replication, and changes in the structure of the cell wall before lysis^1–3.

In the single-particle cryo-electron microscopy (cryo-EM) approach, a sample is deposited on a grid in a thin layer of aqueous solution and rapidly plunged into liquid ethane⁴. This results in the formation of vitreous ice with a structure similar to that of liquid water. Rapid cooling is required to prevent the formation of crystalline ice, which may damage cellular structures. This limits the thickness of samples vitrified under ambient pressure to a few micrometres. Samples up to a few hundred micrometres thick can be cryo-preserved by high-pressure freezing. Individual molecules or macromolecular complexes embedded in vitreous ice are photographed using a transmission electron microscope. Information from many thousands of the projection images of the macromolecules is used to reconstruct their three-dimensional structures. The images are aligned and averaged to improve the signal-to-noise ratio of the reconstructed structure. Pleomorphic objects, such as cells or irregular virus particles can be studied by cryo-ET⁵. Cells have to be thinned to about 200 nm by cryo-sectioning or focused ion beam (FIB)-milling before imaging in a transmission electron microscope because of the limited penetration of electrons through biological samples (Figure 1). In cryo-ET, samples are imaged from different directions by tilting the stage of the microscope. The resulting tilt series of images is used to calculate the three-dimensional reconstruction of the object. The sensitivity of biological objects to an electron beam limits the overall dose that can be used to image one sample, resulting in a low signal to noise ratio in the reconstructed tomograms. However, sub-tomogram averaging can be used to resolve the structures of regular components of the tomograms with high contrast and resolution.

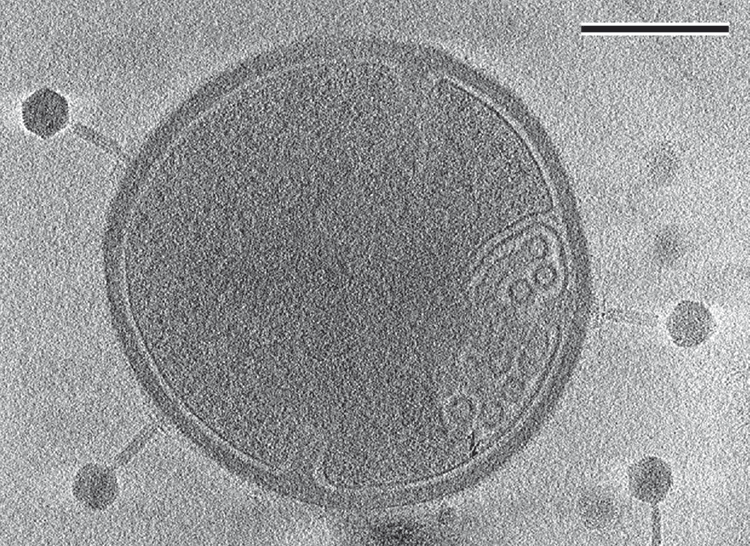

Figure 1.  Cryo-electron tomography of Staphylococcus aureus cell infected by bacteriophage φ812 from the family Myoviridae, genus Kayvirus. Central section of S. aureus cell with resolved cell wall, cytoplasmic membrane, and vesicles formed inside the cell. Acquisition of the tomographic data was possible thanks to the use of focused ion beam milling to prepare an electron transparent lamella of S. aureus cell. Scale bar represents 200 nm.

Currently, high-resolution structures can only be routinely determined for protein complexes or phage particles that can be prepared with high purity and at high concentration. These experimental constraints limit the knowledge that can be gained from the resulting structures, because the complexes may display different conformations in vivo. Determining the structures of macromolecular complexes in situ without the need to purify them from cells would avoid these experimental limitations. Structural analyses of macromolecular complexes in situ are becoming practical thanks to developments in: (1) sample preparation methods, including correlative light and electron microscopy (CLEM), focused ion beam milling, and localised mass spectrometry⁶; and (2) software for data processing including sub-tomogram classification and averaging⁷. CLEM is particularly useful in the combination with FIB-milling technique. Events of interest in the cell can be pre-selected by cryo-fluoresce microscopy and subsequently milled with high-precision to open a ‘window’ into the cell for transmission electron microscopy. The localised-mass spectroscopy utilises imaging of single particles from a cell extract. First, the cell lysate is chromatographically separated into fractions. Subsequently, the fractions are characterised by mass spectrometry and macromolecules present in the sample are structurally analysed by transmission electron microscopy. The new advancements in software for classification of particles allow classification of particles in a sample based on their structures. This can be imagined as an in silico ‘purification’ of the macromolecular complexes.

Tailed phages eject their genomes into bacterial cells, however, several aspects of this process are not well understood (Figure 2), including: (1) How is the phage genome ejection triggered? (2) How is the genome transported across bacterial membrane(s)? (3) What is the mechanism for the completion of phage genome ejection after the pressures inside the phage head and cell equalise? (4) How is the transcription machinery recruited to the phage genome? These questions may be addressed by cryo-EM observations of interactions of phages with liposomes⁸, nevertheless, more biologically relevant answers will be obtained by time-resolved cryo-ET studies of phage genome ejection into mini-cells or focused ion beam milling-prepared sections of bacteria^9,10. Changes in the phage particle prior to genome ejection, formation of channels in the membrane, possible genome-uptake machinery or phage genome localisation in the cell may be characterised by such studies. Single particle cryo-EM and X-ray crystallography can be used to determine the structures of the complexes of phage receptor-binding proteins with the receptors. Such knowledge may make it possible to design a group of genetically modified phages with a receptor range so wide that bacteria would be incapable of becoming resistant to the phage infection. Phage receptor-binding proteins themselves may be used as tools for the rapid detection and identification of pathogenic bacteria in environmental samples.

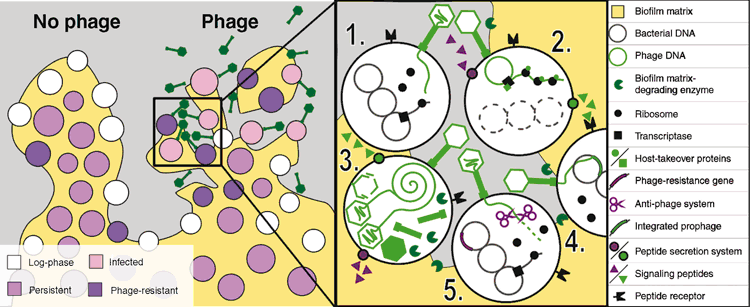

Figure 2.  Open questions in our understanding of phage infection of bacterial biofilm that may be addressed with the use of structural biology methods. Cells in a biofilm are in different metabolic states. Phage infection may result in degradation and dispersion of biofilm due to a phage-driven expression of biofilm matrix-degrading enzymes. Inset: (1) What is the trigger of phage genome ejection? What is the mechanism for ejection of phage DNA after equalisation of pressures inside phage head and bacterial cytoplasm? (2) How is the host replication, transcription, and translation machinery hijacked for the expression of phage genes? (3) How do matrix-degrading enzymes enhance dispersion of phages through a biofilm? (4) What are the mechanistic details of macromolecular complexes enabling phage-phage communication in the regulation of lysis-lysogeny decisions? (5) What are the mechanisms of function of bacterial anti-phage systems?

Mutations enabling bacteria to avoid phage attachment or block genome ejection can have secondary effects on the cellular phenotype. Phage receptors are often bacterial virulence factors or play roles in substances intake¹¹, and thus phages targeted to bind to specific cellular receptors could be used to shift bacterial population towards lesser virulence¹².

Bacterial anti-phage defense systems, such as restriction-modification, CRISPR/Cas, bacteriophage exclusion, or the defense island system associated with the restriction-modification system, degrade phage DNA during delivery^13–15 (Figure 2). However, many phages have acquired anti-defense proteins^16,17. Structural understanding of the anti-phage defense complexes will enable the preparation of phages capable of protecting their DNA during delivery, which may be important for the development of phage therapy. Similarly, the systems by which bacteria abort late stages of phage infection are assumed to be widespread, but many of them have not been characterised in detail¹⁸. The CLEM and cellular cryo-ET could be used to visualise these processes in vivo and explain the functions of these complexes. These findings will enable the engineering or phages with exceptionally broad host-ranges.

Some myoviruses, such as T2 and T4 infecting Gram-negative bacteria and K and SPO1 of Gram-positive bacteria, degrade the host genome and block cell division in minutes after the initiation of genome ejection^19,20. This mechanism enables them to complete their lytic cycle quickly and thus gain a reproductive advantage over slower replicating phages. The proteins encoded by the host takeover region of the phage genome, which is the first part of its DNA that enters the cell, enable the rapid shutdown of the host’s transcription²¹. When expressed on their own, these proteins are toxic for the natural host of the phage but also for other bacterial species²⁰. In contrast, some podoviruses such as φ29 do not inhibit cell growth²². Genomes of viruses from the family Podoviridae contain fewer than 20 early genes and during phage infection only affect the expression of a minor number of host genes²². Therefore, podoviruses are a suitable model system for studying the minimal set of phage products that are required to hijack the host resources for phage replication. The interactions of phage proteins with host complexes could be studied by the time-lapse cryo-EM of macromolecular complexes pre-sorted by mass spectrometry²³. Identification of the host takeover protein-machinery may enable design of antibiotics inspired by phage proteins²⁴.

Biofilm inactivation is a major healthcare and food-hygiene challenge. It has been shown that some phages can eliminate a biofilm thanks to their ability to (1) bind to and accumulate within the biofilm matrix; (2) infect dormant cells; (3) express phage biofilm de-polymerases or induce bacteria-encoded biofilm depolymerases²⁵. Nevertheless, biofilm infection by some lytic phages can lead to accelerated biofilm growth with an increased concentration of extracellular DNA in the biofilm matrix²⁶.

The metabolic heterogeneity of cells within a biofilm presents a challenge for analysing the impact of the phage infection on the biofilm (Figure 2). Identifying the genetic markers of fast proliferating cells, anaerobically growing cells, starving cells, and persister cells will enable the differentiation of bacteria by fluorescence microscopy to study their unique interactions with phages by cryo-ET. However, some phages can form particles with different propensities to infect starved cells²⁷. CLEM and cryo-ET studies of biofilm infection by bacteriophages will determine whether and how phage particles distinguish between metabolically distinct host cells. Mechanisms that allow phages to diffuse through the biofilm matrix are of interest because they may be used to enhance penetration of antibiotics into biofilms. Furthermore, phage-derived nano-vehicles may be used for the targeted delivery of drugs into biofilms.

It is beneficial for phages to establish lysogeny in an environment with a shortage of non-infected host cells²⁸. For the application of phage therapy, however, lysogeny is not desired because of the possible associated acquisition of bacterial virulence factors²⁹. The communication among phage-infected cells and phages was proven in several cases, either in the most simple form of super-infection exclusion regulated by changes in the bacterial membrane potential³⁰, complex communication by the production of Arbitrium-like peptides³¹, or through a host-produced quorum-sensing system³². Even lytic phages were shown to modify the speed of their reproduction cycle based on available nutrients and enter the ‘hibernation’ phase in starved cells³³. X-ray crystallography and nuclear magnetic resonance spectroscopy can be used to determine the structural interactions between the complexes responsible for such communication. Understanding this communication may enable the use of temperate phages for phage therapy in bacterial pathogens for which there are no available strictly virulent phages. In lytic phages it can lead to design of small-molecule additives, ensuring the lytic cycle will be rapid and robust.
