Helium in the Australian liquefied natural gas economy

Keywords: Australia, argon, carbon dioxide, helium, LNG, neon, nitrogen, noble gas, remaining hydrocarbon resources, stable isotopes.

Australia has substantial gas resources, being the third-largest energy resource behind coal and uranium (Skirrow et al. 2013; AERA 2016). A significant proportion of these gas resources are exported as liquefied natural gas (LNG). These LNG projects are supplied by offshore gas accumulations in northern and western Australia and by onshore coal seam gas (CSG) in eastern Australia (APPEA 2017). The LNG is exported to northern markets; Japan, China, South Korea and Taiwan are the most significant established importers, and India is an emerging market (APPEA 2017). It is expected that in 2018, Australia will surpass Qatar as the world’s largest LNG producer (AERA 2016). As a consequence of the LNG refining process that predominately condenses methane to a liquid, the other components in the original gas stream are either retained or discarded. For example, carbon dioxide (CO₂) is initially removed, natural gas liquids (C₂₊ hydrocarbons) are retained and the non-condensable components, predominantly nitrogen (N₂), are generally disposed of into the atmosphere. This component is referred to as the N₂-enriched tail (purge, end flash) gas (Reinoehl 2012). Consequently, minor components, including helium (He), are further concentrated within the tail gas. With the large volumes of gas passing through the LNG processing plant, commercial opportunities arise for further helium extraction utilising the tail gas, where the original helium concentration is as low as 0.04% (Daly 2005). Australia has one helium extraction facility, operated by BOC since 2010 at the Darwin Helium plant (Manufacturers’ Monthly 2010), where their helium-feed gas is the tail gas from the ConocoPhillips LNG processing of the Bayu-Undan gas accumulation in the Bonaparte Basin (ConocoPhillips 2017).

This paper reviews the anthropogenic uses of helium, summarises the helium concentration in Australia’s producing offshore and onshore gas accumulations and delineates geochemical and geological factors contributing to the origin and distribution of helium in Australian natural gases. Importantly, this study presents a ranking methodology for current and proposed LNG projects for their capacity to supply a helium-enriched tail gas that may be deemed suitable for further helium extraction. Future exploration opportunities delivered via acreage release will provide the first step in discovering more natural gas and helium resources in Australia (DIIS 2017).

The noble gas helium is a critical commodity of strategic importance to high-technology fields with applications in defence, medicine, manufacturing, energy and scientific research (Cai et al. 2012; Hamak 2013). A reliable supply of helium into the future is necessary to ensure the continuation of these applications as well as enabling the emergence of new technologies in energy production, transport and information technology.

Soon after the discovery of the noble gas helium in natural gas at the turn of the 20th Century (Cady and McFarland 1907), the United States of America (USA) government realised the strategic value of helium. The first-ever helium plant was built by the US Army in 1915 in Petrolia, Texas, but helium was never sold commercially (Seibel and Kennedy 1934). Further helium plants at Fort Worth and Amarillo in Texas produced helium at around 10 million cubic feet (MMcf) per year. By 1935, the price of helium dropped from US$2.5 million (>$50 million present-day equivalent) to US$30 (US$540 present-day equivalent) per thousand cubic feet (Mcf) (American Chemical Society National Historic Chemical Landmarks 2000). The monopoly of helium sales by the US government was effectively broken in the 1990s when other countries came into the market, mainly because of the global increase in LNG production. Furthermore, drawdown of the US Bureau of Land Management (BLM) Cliffside helium reserve (National Materials Advisory Board 2010) helped create a gap in the helium market. These factors have enabled supply and demand to dictate helium pricing (Cai et al. 2012), and in today’s market helium is over five times cheaper than in 1935.

Helium usage varies from year to year, and detailed data on global usage are limited (Nuttall et al. 2012a; and references therein). The US Geological Survey (USGS) collects yearly statistics on helium usage within the USA. Fig. 1a compares the usage of helium over the past decade and Fig. 1b shows that the USA and Qatar are the largest producers of helium worldwide.

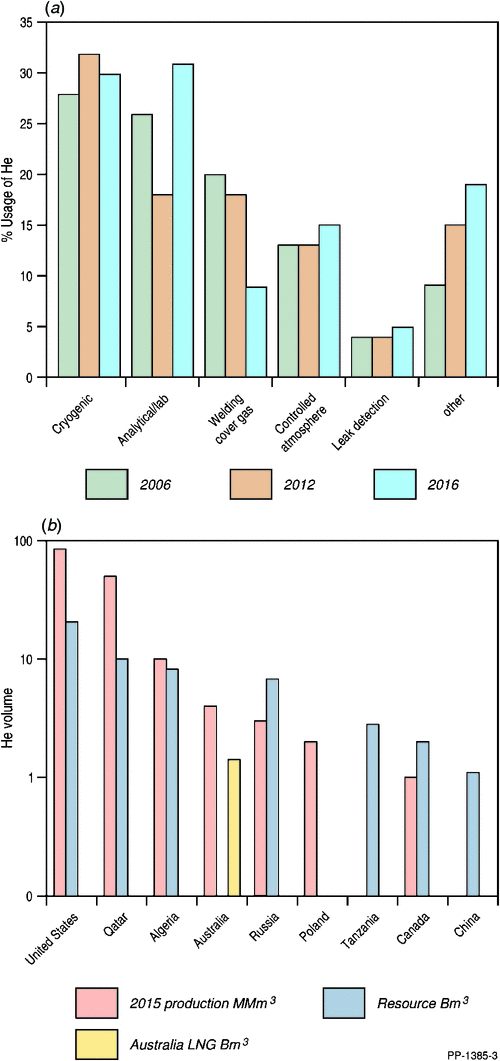

Fig. 1.  Graphical representation of (a) the percent usage of He against type of use in the USA over the past decade for 2006 (USGS 2007), 2012 (USGS 2012) and estimate for 2016 (USGS 2017b), and (b) the volume of He commodity available in each country: 2015 He production (million cubic metres (MMm³)) (USGS 2017b), He resource estimate (billion cubic metres (Bm³)) (USGS 2017b) and Australian He resource (Bm³) from liquefied natural gas (LNG) (1.67 Bm³; sum total of remaining helium resource in Table 3).

Helium is chemically and physically unique, being the only gas that is not a solid below 14 K and it remains a liquid at 0 K (at atmospheric pressure) allowing its use as a coolant at extreme temperatures. This property is utilised in cryogenic applications, e.g. magnetic resonance imaging instruments and superconductors, which are entirely dependent on helium (Cai et al. 2012). Of note is CERN’s Large Hadron Collider that individually requires a supply of 10–15 MMcf (283–425 Mm³) of helium per year for cryogenic purposes (Claudet et al. 2015; CERN 2017).

Helium acting as an inert atmosphere is used in many types of high-tech fabrication, including the manufacture of fibre-optic cables, computer chips and semiconductors. In the fibre-optics industry, helium is required to quickly cool the fibre as it is drawn from a furnace and to prevent bubbling in the fibre (Cai et al. 2012). The electronics industry is a significant user of helium for manufacturing of liquid crystal displays and plasma televisions (National Materials Advisory Board 2010). Helium also has many scientific and laboratory uses, such as being used in ultra-high purity as a carrier gas in chromatography (including use at Geoscience Australia (GA)) and in low temperature physics experiments.

Historically, the low helium price in the USA has led to its widespread use as a welding cover gas (National Materials Advisory Board 2010), remaining inert due to its highest ionisation potential compared with any other element or compound. However, the decline in helium in welding in 2016 (Fig. 1a) is in contrast to the increased domestic consumption of helium that same year (USGS 2017a, 2017b). The recent sharp decrease in its use as a welding gas is perhaps in response to an overall steady decline in helium production (USGS 2012) and a transition to other unreactive gases (e.g. argon).

Helium is used in leak detection because it is the smallest molecule and will pass through very small defects in a system. The abundance of helium in the atmosphere is very low, so even a small leak can be easily detected. Leak detection is also pertinent to the electronics and advanced materials industries, scientific research and the space industry (National Materials Advisory Board 2010). Other applications of helium are many and varied:

• Helium is lighter than air; therefore, it has uses for lifting, for example, party and parade balloons, weather monitoring, defence (surveillance and reconnaissance) and scientific research balloons and blimps (National Materials Advisory Board 2010);

• In rocketry, helium is used to flush hydrogen (H₂) pressurised fuel tanks (e.g. a USA space shuttle launch used ~1 MMcf (28.3 Mm³) of helium (NASA 2001));

• Other medical uses of helium include lung tissue visualisation, heart catheterisation, laser treatment and asthma treatment (Bureau of Land Management 2017);

• Very high sonic velocity in helium has been exploited in sprayed metal coatings (Cai et al. 2012);

• Helium’s low susceptibility to becoming radioactive and its relatively high thermal conductivity means that it is used for heat transfer in some gas-cooled nuclear reactors (Cai et al. 2012);

• Satellites employ helium to cool telescopes for improved image resolution;

• Helium is mixed with either oxygen or oxygen and nitrogen to extend diving depths (Smith et al. 2004);

• The stable ³He isotope—man-made from tritium (³H) decay and up to 100 million times rarer than the ⁴He isotope in the natural environment—is increasingly used in neutron detectors for heightening security measures (Cartwright 2012);

• The stable ³He isotope is being investigated for its use for nuclear fusion power that produces non-radioactive waste (Smith et al. 2004); however, this application is limited by the isotope’s scarcity compared with ⁴He;

• The stable ³He isotope is being used in lung cancer screening and imaging; and

• Helium is being used in surface prospecting where high helium anomalies may indicate sub-surface petroleum accumulations (Riley 1980).

In the future, helium will remain a critical commodity for a wide range of low-carbon technologies and guaranteed supply will depend on an increased focus of recycling (Smith et al. 2004) and governments and industries working together both locally (Riley 1980) and across the globe (Smith et al. 2004; Nuttall et al. 2012b; Scurlock and Francis 2012).

In 2015, global helium production was 5.51 billion cubic feet (Bcf) (156 million cubic metres (MMm³)), coming predominantly from the USA and Qatar (Table 1), with Australia contributing a very minor 0.14 Bcf (4 MMm³) from BOC’s Darwin helium processing plant (USGS 2017b). The USGS (2017b) estimated that the 2015 global helium market for Grade-A (≥99.997%) helium was worth around US$1.1 billion.

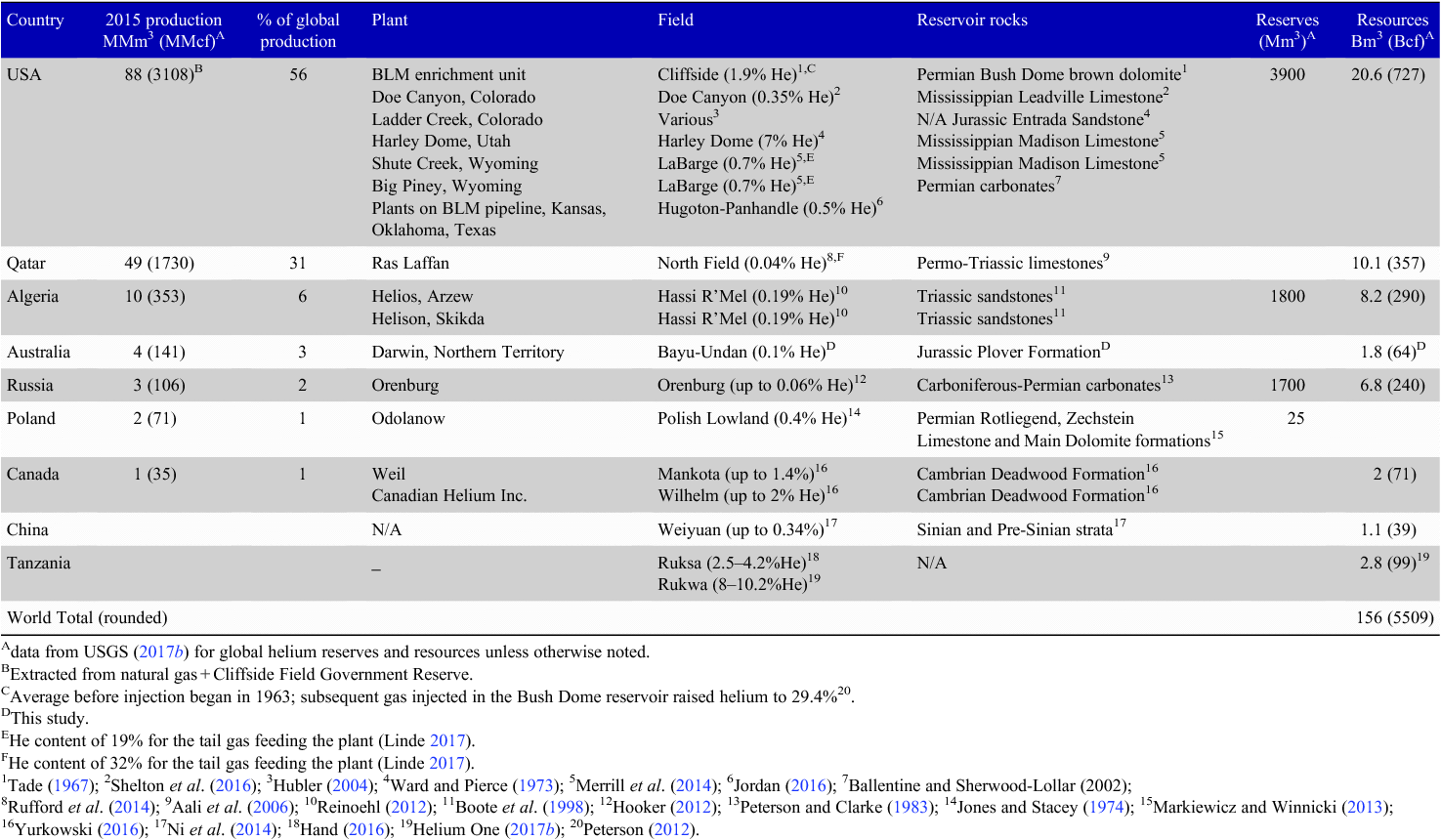

Table 1.  Location of global helium extraction plants
N/A = information not available, BLM = Bureau of Land Management, — = not applicable

As stated by the USGS (2017a), the best available global helium resource estimates, as of 31 December 2006, are 1.87 trillion cubic feet (Tcf) (51.9 billion cubic metres (Bm³)); a USGS update is currently underway and will take several more years to complete. Fig. 1b is a summary of these 2006 global helium resource estimates with commercial recovery possible from helium contents as low as 0.04% (see also Table 1) because of the processing of gas for LNG, and in some instances, domestic gas. At the other extreme, a large new potential helium resource in Tanzania has been discovered where the gas has a helium content up to 10.2% (Helium One 2017a) (Fig. 1b and Table 1).

The USA is the largest user and has the largest reserves of helium worldwide (Fig. 1b) with Qatar suppling around ⅓ of global helium in 2016 (USGS 2017b). The domestic supply of the USA will continue to be dominated by the BLM’s annual auction from the federal helium storage at Cliffside Field near Amarillo until cessation on or before end-September 2021 (USGS 2017a). This depleting helium reserve, together with the transient limited helium output from Qatar in 2017 through political sanctions, has led to a forecast of a global helium deficit commencing in 2020 (Helium One 2017b). Of note is that Hooker (2012) predicted an accelerating helium shortfall after 2016. However, these transient shortfalls are to be expected with helium predicted to be available via the petroleum industry from natural gas for at least another 50 years before ending early next century (Nuttall et al. 2012a, 2012b).

In response to the perceived near-future volatility in the helium supply chain and to help foster an expansion in local helium production, GA has undertaken an assessment of Australia’s LNG feedstocks to determine the crude helium by-product’s potential for future growth in industrial helium production.

Helium makes up around ¼ of the mass of the Universe (Nath 2013). The atmospheric reservoir of helium is in dynamic equilibrium with continual loss of helium into space (calculated residence time of 1 Ma for ³He in the atmosphere; Allègre et al. 1987) and replenishment mainly through volcanic activity, which is supplemented by the decay of tritium, resulting in a present-day concentration of 5.24 parts per million (ppm) vol/vol) (de Laeter et al. 2003; Sano et al. 2013). Of the other noble gases, neon (Ne) is partially lost to space (Sarda et al. 1988), while atmospheric argon (Ar) and the heavier noble gases, krypton (Kr) and xenon (Xe), have remained within the atmosphere for billions of years (Allègre et al. 1987). The noble gas isotopic ratios have remained constant from at least the Phanerozoic (Allègre et al. 1987).

Helium was first discovered on Earth in 1895 (for helium’s controversial history in the late 19^th century see Jensen 2004 and Nath 2013) as the inert gas released after acid digestion of the uranium-bearing, radioactive mineral clèveite (Ramsay 1895), in quick succession in groundwater (Crookes 1897, 1898) and in the terrestrial atmosphere (Baly 1898; Crookes 1898). A decade later, helium was found to be almost ubiquitous in natural gas (Cady and McFarland. 1907), and in 1939 the existence of two stable isotopes of helium (³He and ⁴He) was established (Alvarez and Cornog 1939). For over a century, natural gas has continued to be the sole source for helium extraction, principally from wells within the USA with >0.3% helium (Gage and Driskill 2004; and references therein). Helium extraction from air, with its enormous reservoir of 811 Tcf or 23 trillion cubic metres (Tm³), could be a niche industry when associated with neon extraction from air processing (Clarke et al. 2012). However, in the future, larger volumes of air-extracted helium will need to be cost competitive with other sources, such as natural gas extraction (Clarke and Clare 2012).

The enormous volumes of gas processed by the global LNG production industry have enabled more countries to extract helium from the tail gas. Current global helium producing plants outside of the USA are using initial helium molar percentages between 0.04% and 2% (Table 1); with the low helium concentrations (down to 0.04–0.06‰) in natural gas successfully commercialised in Qatar (Daly 2005) and Russia (Hooker 2012). Therefore, the future potential for helium production is linked with the rising demand for LNG and the location (e.g. onshore or offshore) and capacity of the associated LNG processing plants. In addition, natural gas for Australian domestic use may provide future helium extraction potential.

Helium concentrations in global natural gases show a wide range from <0.005% up to around 10%. For example, reservoirs in the Permian Basin in western Texas and south-eastern New Mexico, USA, have 9.74% helium (Tongish 1980), and the Rukwa Project, Tanzania, has 10.2% helium (Helium One 2017a). In the Amadeus Basin in Australia, gas in Mt Kitty-1 has 9.0% helium (McInnes et al. 2017).

Various classification schemes for helium abundance appear in the literature:

• trace helium contents are up to 0.005% (Tongish 1980),

• very low helium <0.05% (Gage and Driskill 2004),

• low helium <0.1% (Xu et al. 1991),

• helium-rich >0.1% (Ballentine and Sherwood Lollar 2002),

• helium wells >0.3% (Gage and Driskill 2004),

• economic helium wells >0.5% (Zartman et al. 1961), and

• high helium content is >1% (Xu et al. 1991).

Herein ‘high helium’ is regarded as being >0.5%. In the context of LNG and associated helium purification, natural gases down to 0.04% helium are proven to be commercial, although the original abundance of nitrogen (N₂), as the dominant non-condensable gas, in the natural gas must also be considered.

To best understand the origin, occurrence and distribution of helium in natural gas, it is important to identify genetic and/or non-associated links with the other noble gases, as well as with the organic and inorganic gases. The conservative nature of helium and nitrogen will govern the enrichment factor (N₂/He being considered constant; also see section ‘Helium from LNG processing’) from the raw gas stream to the LNG N₂ dominated- and He-enriched tail gas. Ballentine and Sherwood Lollar (2002) reported that gases with helium concentrations >0.1% contain high nitrogen with few exceptions and that the N₂/He ratios vary between ~5 and 50. In the Australian Bayu-Undan gas accumulation/Darwin LNG/Darwin Helium supply chain the N₂/He ratio varies from 19 to 42 (3.4–3.9% N₂, 0.09–0.21% He) for the Bayu-Undan gases from individual wells, and in the Darwin LNG tail gas/BOC Darwin helium-feed gas the N₂/He ratio is 31 with 3% helium (Linde 2010). Note that Clarke et al. (2012) list an incorrect Darwin LNG feed-in and tail gas of 0.015% He and 50% He, respectively.

In the subsurface, the three sources of helium in natural gases are from the mantle, crust and groundwater (Byrne et al. 2017; and references therein); the latter is initially derived from the dissolution of atmospheric gases either at the time of sedimentation or much later through exchange with formation water. All sources are dominated by ⁴He but the relative abundance of ³He can help infer source inputs. The ratio of ³He to ⁴He is defined as R. The present-day atmospheric ³He/⁴He ratio = 1.39 × 10⁻⁶ is also denoted as Ra (R/Ra = 1). Compared with the atmospheric ³He/⁴He ratio, Mid-Ocean Ridge Basalt (MORB)-derived helium has an average R/Ra = 8, the helium (as dissolved air) in groundwater has an R/Ra = 0.985 and crustal-derived helium displays an average of R/Ra = 0.02 (Ballentine et al. 1991). The elemental composition of uranium (²³⁵U and ²³⁸U), thorium (²³²Th) (both are the radiogenic parents of ⁴He) and lithium (⁶Li) (the nucleogenic parent of ³He) in the rock forming minerals will ultimately determine the ‘average’ R/Ra. However, R/Ra ratios can vary considerably within subsurface reservoirs, with R/Ra ratios in the crust varying from <0.01 to 0.05 (Ni et al. 2014; Darrah et al. 2015; Moore et al. 2017; and references therein), upper mantle ~2 to 8 R/Ra (Darrah et al. 2015) and lower mantle up to 40 R/Ra (Poreda et al. 1986). Evolutionary mantle models predict an initial R/Ra ratio >100 (Tolstikhin and Marty 1998), while a R/Ra ratio of 230 is assumed for the initial ‘un-degassed’ (i.e. primitive, never melted) Earth’s mantle, which is between the inferred R/Ra ratio of 120 and 330 for the initial solar nebula and the solar wind, respectively (Class and Goldstein 2005; and references therein). The much higher ³He content within the mantle reflects the inherited primordial ³He from when the Earth was formed, with the upper mantle being almost completely degassed compared with the lower mantle (Allègre et al. 1987; Tolstikhin and Marty 1998). Alternatively, mantle convection and magmatism results in variable helium isotopic depletion where prolonged isolation of plume sources preserves the high ³He/⁴He ratio (i.e. in ocean island basalts (OIB)) compared with a more degassed mantle during prolonged continent and oceanic crust formation (i.e. MORB) wherein radiogenic ⁴He makes a higher contribution over time to mantle helium (Class and Goldstein 2005).

The crustal noble gas isotopes are produced at known rates and in known relative proportions, and therefore, quantitative analysis and age determination is possible (Ballentine and Sherwood Lollar 2002; and references therein). The higher radiogenic production rates of ⁴He in crustal versus mantle sources is intimately linked with the higher U and Th contents in the former compared with the latter (Ballentine and Burnard 2002; Class and Goldstein 2005), with the lowest radioactive metal contents associated with the highest ³He/⁴He ratios (e.g. OIB) (Class and Goldstein 2005). However, mixed sources are difficult to deconvolute based on helium isotope systematics alone and commonly require the combinations of heavier noble gas abundance and isotopic compositions to differentiate the three end-member inputs (Ballentine et al. 1991). For example, ²⁰Ne and ³⁶Ar are considered entirely atmospheric-derived, so departures in isotopic ratios in natural gases compared with atmospheric ratios (⁴He/²⁰Ne in air = 0.32 (Ballentine and Sherwood Lollar 2002) and ²⁰Ne/³⁶Ar in air = 0.55 (Ballentine et al. 1991)), give clues to additional source inputs (Gilfillan et al. 2009; Hunt et al. 2012; Darrah et al. 2014, 2015). The water solubility of helium and neon are similar; however, solubility differences amongst the heavier noble gases add an extra complication, with the ²⁰Ne/³⁶Ar ratio in air-saturated water (ASW) being lower than atmospheric by five times (Ballentine et al. 1991). Intra-element ratios are also employed with ⁴⁰Ar/³⁶Ar values greater than air (i.e. >295.5; Zartman et al. 1961; Hunt et al. 2012) being attributed to the addition of potassium (K)-derived radiogenic ⁴⁰Ar (denoted as ⁴⁰Ar*; Ballentine et al. 1991), which could potentially change through time. Ballentine and Sherwood Lollar (2002) also noted that the mantle-derived ⁴⁰Ar/³⁶Ar ratio is extremely high (28 000). In the noble gas analysis of vertically stacked natural gas reservoirs in the Pannonian Basin, Hungary, Ballentine et al. (1991) used a combination of the above ratios to conclude that helium had a dominantly crustal source (0.18 < R/Ra < 0.46) and there is a depth increase in radiogenic ⁴⁰Ar* relative to atmospheric ²⁰Ne and ³⁶Ar. Furthermore, volumetric constraints required an additional input of an even deeper source of radiogenic ⁴He. In the analysis of the Hugoton-Panhandle giant gas field, Ballentine and Sherwood Lollar (2002) concluded that the helium contribution to the reservoired gas was derived from a crustal source (R/Ra 0.14–0.25) and had a negligible atmospheric helium input based on the extremely high ⁴He/²⁰Ne (>18 000) and ⁴⁰Ar/³⁶Ar (816–1156) ratios. Preferential release of ⁴He over ⁴⁰Ar* from deep mineral grains below temperatures of ~200°C was also considered (Hunt et al. 2012; Darrah et al. 2014, 2015). There are numerous other literature examples of detailed analysis of noble gas isotope systematics applied to natural gases (see reviews by Hunt et al. 2012; Prinzhofer 2013; and Byrne et al. 2017). However, such a well- or field-specific analysis is outside the scope of this paper. Instead, we present a preliminary, basin-wide analysis of these geochemical datasets for Australian natural gases.

Helium in natural gas accumulations gives a wide range in R/Ra ratios depending on the natural gas genesis, abundance of radioactive elements, outgassing efficiencies, accessibility to deep hot fluids, timing of magmatic input and time within the reservoir (Polyak and Tolstikhin 1985). Helium is readily released from minerals and transferred to underground fluids (magmatic/hydrothermal/pore water) where the helium isotopic composition is naturally averaged and can take on regional characteristics (Hunt et al. 2012; Darrah et al. 2014, 2015; Moore et al. 2017). During a magmatic event, injection of hot silicate-rich fluids carrying dissolved excess ³He from the deep crust results in elevated R/Ra ratios that are primarily associated with the magmatic event, although the timing of the injection of molten fluid is not necessarily the age of the tectonic movement (Polyak and Tolstikhin 1985). After the magmatic activity has ceased, the R/Ra ratio declines to a background level within ~500 Ma due to the radiogenic input of ⁴He (Polyak and Tolstikhin 1985). Oceanic rifts tend to have fluids with rather constant, but elevated, R/Ra ratios (7−9 Ra) indicative of MORB-like dominant mantle inputs, while continental rifting zones show the widest range in R/Ra (2−30 Ra), with the highest R/Ra ratios being associated with either plume heads or the most recent volcanic activity (Poreda et al. 1986, 1992; Darrah et al. 2013). Such is the case in the Otway Basin, where CO₂-rich natural gases have the highest mantle helium input (Watson et al. 2004). Areas above mantle plumes (hot spots) have consistently high R/Ra ratios (up to ~40 Ra), with values depending on whether the rising hot fluids tap into either the upper or lower mantle and/or mixes with recycled crustal components (Polyak and Tolstikhin 1985).

From an analysis of a large USGS database of natural gases, Brown (2010) has gleaned several geological principles and provided exploration guidelines for high helium (>0.5%) gases. Brown (2010) noted that the high helium gases generally occur either in shallow reservoirs at around 500 m, independent of reservoir age, or in older Paleozoic reservoirs at much greater depths. Furthermore, high helium gases show no correlation with the regional distribution of igneous bodies or (devolatilised) basement provinces, although basement faults and fractures could localise the vertical migration of helium-containing fluids (Brown 2010; and references therein). Helium dissolved in pore water and contact-transfer into an existing gas phase was the main gas exchange mechanism (Sathaye et al. 2016). Thus, higher helium-concentrated pore waters would eventuate where the sediment source had high uranium and/or thorium contents, pore water volume is reduced by lower porosities and initial contact between sediment source-pore water would transfer the most helium. Therefore, exploration areas where high helium contents could accumulate following either fluid migration or the extensive removal of the dominant carrier phase (i.e. hydrocarbon oxidation, CO₂ dissolution) are favoured in reservoirs at shallow depth, with low temperatures and high salinity because helium is least soluble in this aqueous phase (Darrah et al. 2014, 2015; Harkness et al. 2017; Moore et al. 2017). Maximum exposure to pore water, as encountered in long distance migration, also assists in the concentration of helium. Exploration is also more favourable at the edges and migration fronts of supercharged petroleum systems and where the source rocks are marginally mature for gas generation, thereby reducing the dilution of helium with gaseous hydrocarbons, and in the case of intrusives, away from CO₂ occurrences. Since helium is the smallest molecule, a highly competent seal, particularly evaporites (salt (halite) or anhydrite) or unfractured shales, is a prerequisite (e.g. Cliffside field helium storage site (Peterson 2012) and the Amadeus Basin (Clarke et al. 2014; Boreham et al. 2018)).

Helium has been detected in ~800 natural gases analysed by gas chromatography (GC) at GA, together with concentrations (in molar percent (%)) of H₂, N₂, CO₂, C₁−C₅ and C₆₊ hydrocarbons (Boreham and Edwards 2008). Many samples have complementary stable carbon (¹³C/¹²C) isotopic data for the individual C₁–C₅ gaseous hydrocarbons and CO₂, and stable nitrogen isotopes (¹⁵N/¹⁴N), obtained using the methods described in Boreham and Edwards (2008) and Chen and Boreham (2010), respectively. A subset of 252 natural gases from 216 wells was further analysed in the USA for noble gas isotopes by mass spectrometry (MS) at the University of Rochester, Smart Gas Sciences and The Ohio State University using methods outlined in Darrah et al. (2014, 2015).

The wells with natural gases analysed for noble gas isotopes are shown in Fig. 2. Gases for all Australian sedimentary basins with either significant gas production and/or resources have been included in this study, with a main concentration of natural gas samples from offshore Western Australia. The reservoir ages range from the Paleo−Mesoproterozoic (McArthur Basin) to Cenozoic (Bass Basin). The Amadeus Basin contains gases with the widest reservoir age range spanning from the Neoproterozoic to Ordovician.

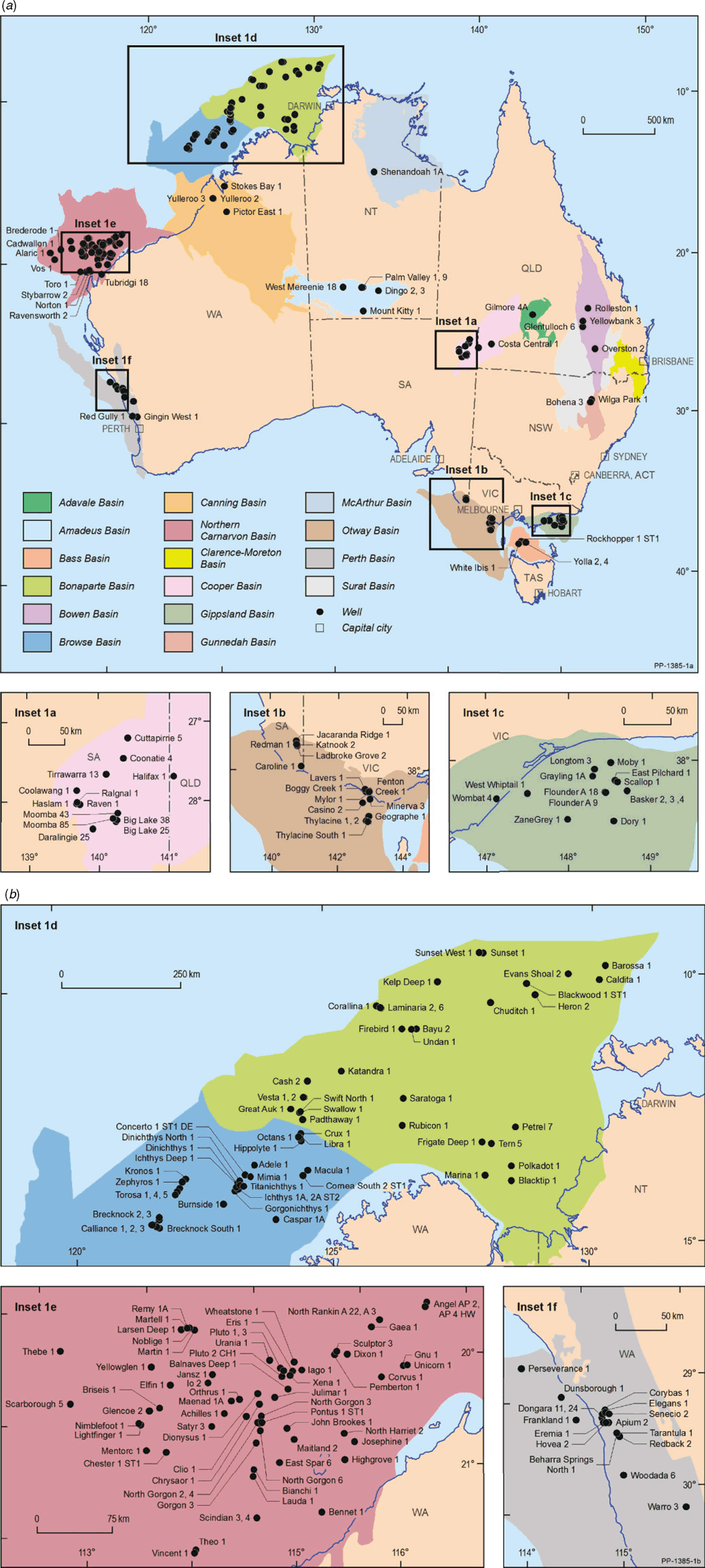

Fig. 2.  (a) Location map of well test samples with noble gas data, including enlarged insets 1a, 1b and 1c. (b) Enlarged insets 1d, 1e and 1f.

The molecular and carbon isotopic composition of the gaseous hydrocarbons analysed for noble gas isotopes are summarised in Figs 3 and 4, which highlight the maturity and some aspects related to the source of the gas. The plot of the natural logarithms of methane/ethane (C₁/C₂) ratio versus the ethane/propane (C₂/C₃) ratio (Fig. 3) reveals that the Australian natural gases are generated over a wide maturity range but are mainly associated with primary gas generation from the organic matter (kerogen) within the source rock with fewer examples of secondary gas generation associated with additional higher maturity oil-to-gas cracking, as previously reported in Boreham et al. (2001). Gases that are biodegraded generally show elevated C₁/C₂ ratios from the input of biogenic methane and elevated C₂/C₃ ratios from the selective biodegradation of propane (Boreham et al. 2001; Harkness et al. 2017). Integration of the molecular composition (C₂/C₃) with the carbon isotopic difference between C₂ and C₃ (Fig. 4) corroborates the maturity and source interpretations based on the molecular compositions alone. Since there is a preference for ¹²C to be consumed in the microbial degradation of gas, this results in a ¹³C enrichment of the residual gas component (Boreham et al. 2001; Milkov 2011).

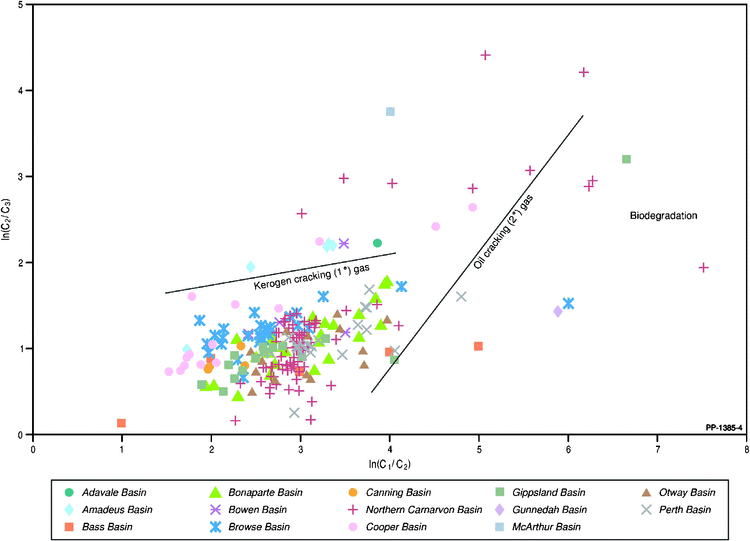

Fig. 3.  Plot of ln methane%/ethane% versus ln ethane%/propane%. Modified after Tao et al. (2014).

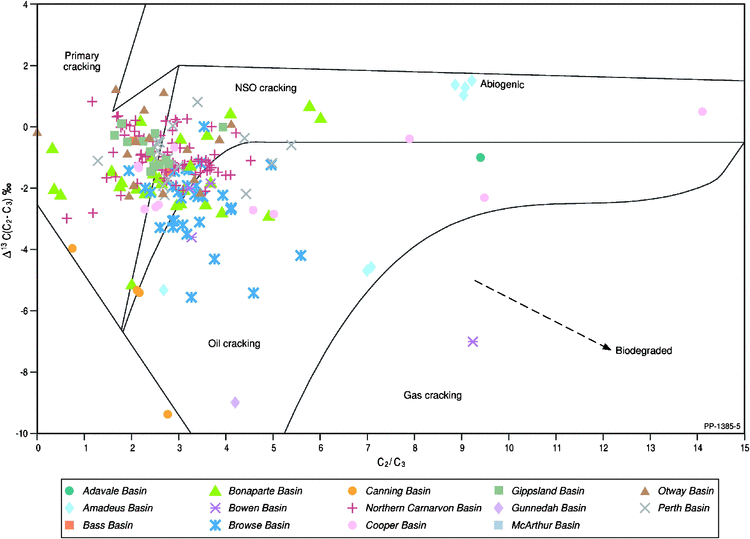

Fig. 4.  Plot of ethane%/propane% versus carbon isotopic difference (Δ¹³C) between ethane and propane (‰). Note: McArthur Basin is off-scale with C₂/C₃ = 42.6 and Δ¹³CC₂–C₃ = 1.78‰, as are the biodegraded gases (most plotted in Fig. 3) having C₂/C₃ > 15 and Δ¹³CC₂–C₃ < –10‰. Modified after Lorant et al. (1998).

The frequency plot of the helium concentration (as determined by GC) in the Australian natural gases is shown in Fig. 5. Although basinal average He% is probably not a good measure of the helium distribution (‘standard deviation’ having a similar value to ‘average’; for example see Table 3) it does provide a means for inter-basin comparison with average helium (data from GC analysis only and excluding gases with helium > 1% (Magee-1, 6.27% He (Pacific Oil and Gas 1992) and Mt Kitty-1, 9% He (McInnes et al. 2017)) ranging from 0.009% to 0.255% in the order Clarence-Moreton (0.009%) < Gippsland (0.014%) < Northern Carnarvon (0.023%) < Bass (0.025%) < Cooper (0.034%) < Bowen (0.041%) < Browse (0.049%) < Otway (0.051%) < Bonaparte (0.075%) < McArthur (0.119%) < Surat (0.126%) < Perth (0.154%) < Adavale (0.167%) < Amadeus (0.183%) < Canning (0.252%) < Gunnedah (0.255%) basins. The older reservoir and sedimentary rocks have more time for radiogenic ⁴He production, and hence, generally show higher average helium content (Boreham et al. 2017). Helium concentrations between 0.005–0.099% show the highest frequency with an exponential decline in the number of natural gases with increasing helium concentrations up to around 10%. A similar trend is seen in the natural gases from the USA (Tongish 1980) but the proportion of gases with helium >0.1% is much greater in the USA. Although differences in the helium distributions between the natural gases from Australia and the USA are likely to be due, in a large part, to the local geological setting and history, a gas sampling bias towards USA gases having elevated helium contents cannot be ruled out (Brown 2010).

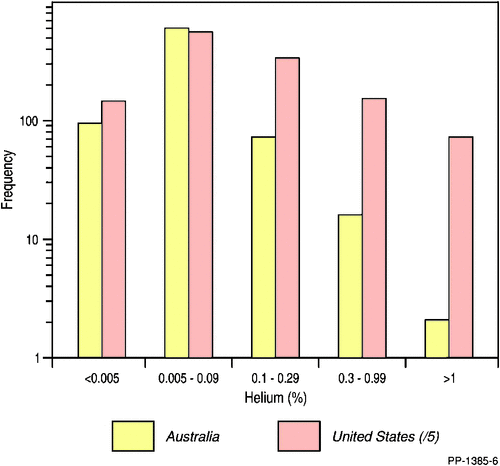

Fig. 5.  Frequency plot of helium% (measured by gas chromatography (GC)) for Australian natural gases and natural gas wells from the USA (Tongish 1980). The number of USA wells is 6455 and the plot displays frequency divided by five in order to get similar displayed maximum values of frequency.

An initial deduction regarding the sources of helium can be obtained from the two stable helium isotopes, ³He and ⁴He. The log plot of ⁴He versus ³He concentrations includes the gradient lines following the trend for the commonly accepted values for mantle, air and crustal (radiogenic) helium sources (Fig. 6). Most Australian gases display helium isotope values consistent with a crustal origin. Notably, subsets of samples from the Bass, Bowen, Browse, Gippsland, Otway and Perth basins, among others, display intermediate values of R/Ra. From the log plot of ⁴He concentration against the R/Ra ratio (Fig. 7), it is clear that the gases can be assigned to varying proportions of crustal, mantle and ASW. Gases with an exclusive crustal source (R/Ra < 0.05) are from the Amadeus, Canning, Cooper, McArthur, Northern Carnarvon and Perth basins. Gases with R/Ra > 0.05 are considered to have a mixed helium source, including examples from the Adavale, Bass, Bonaparte, Bowen, Browse, Gippsland, Gunnedah, Otway and Perth basins. In addition to a crustal source, the contributions of mantle and/or air (where R/Ra < 1) can’t be completely resolved using helium isotopes alone and additional isotopic data from higher noble gases is required (see section on ‘Neon and Argon’). Significant Cenozoic volcanism in eastern Australia has resulted in a major mantle source (R/Ra > 1) occurring in some natural gases from the Bass, Gunnedah and Otway basins.

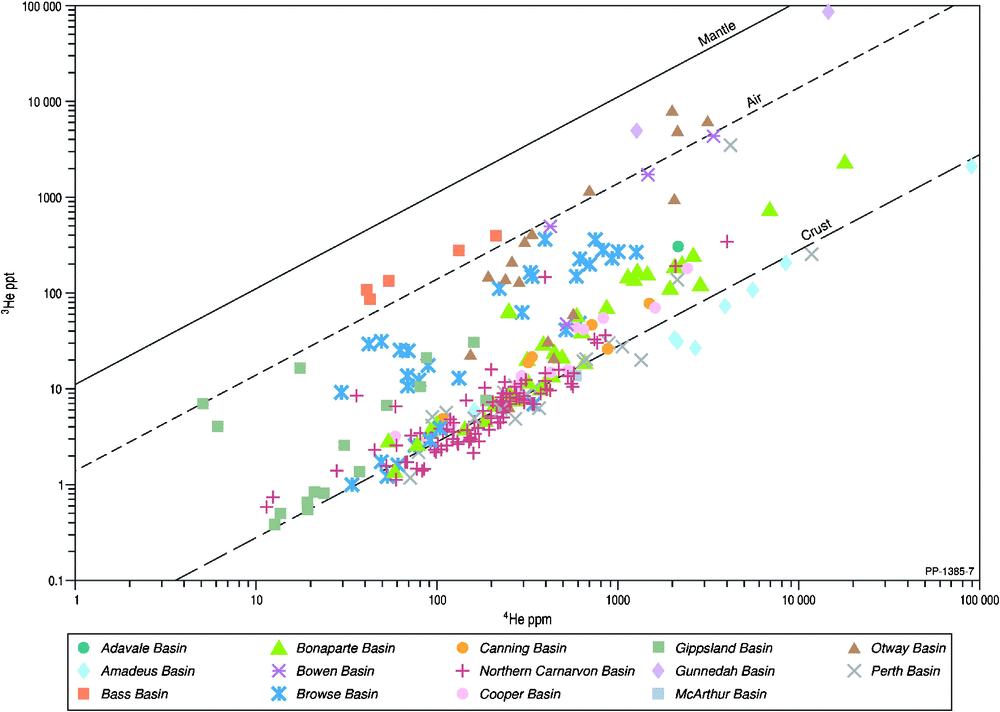

Fig. 6.  Plot of ⁴He concentration in parts per million (ppm) versus ³He concentration in parts per trillion (ppt) by volume (measured by mass spectrometry (MS)). Gradient lines follow commonly used values for crust, air and mantle with (³He_sample/⁴He_sample)/(³He_air/⁴He_air). (R/Ra) = 0.02, 1 and 8, respectively.

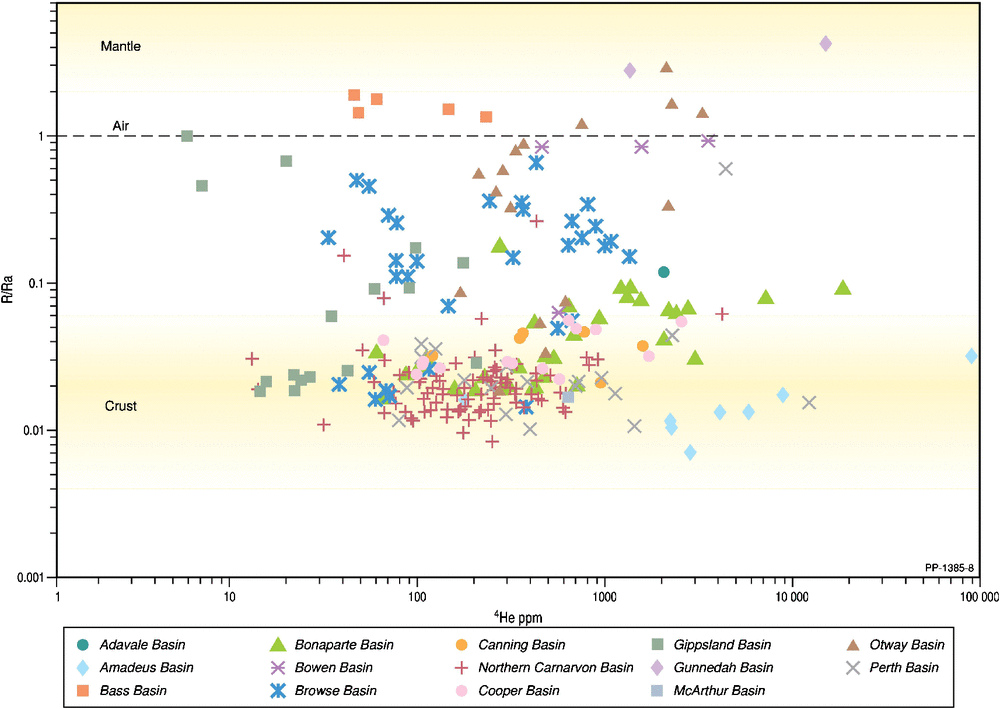

Fig. 7.  Plot of ⁴He concentration (ppm) versus the R/Ra ratio. Shaded areas show commonly accepted ranges for crustal (R/Ra 0.05 to < 0.01; Ni et al. 2014; and references therein) and mantle (R/Ra ~2 to 8; Darrah et al. 2015) sources in natural gases.

It is informative to delve a little deeper into the origin of helium to highlight the limitations in using only helium isotopes without attention to the other geological and geochemical datasets (also see next section ‘Relationships between helium and other inorganic gases’). For example, surface heat flow is a combination of mantle and crustal inputs, and the general dipartite division of high heat flow between radiogenic heat flow in eastern Australia and sub-lithospheric (mantle) heat flow in western Australia (Hasterok and Gard 2016) may suggest concentration of ⁴He in the former and ³He in the latter regions. Obviously local radiogenic ⁴He production over time will attenuate the ³He content with lowering of R/Ra in the natural gas (e.g. Amadeus and McArthur basins; Figs 6 and 7). In addition, in central Australia the crustal contribution to heat flow is about twice that expected of the global-average continental crust (McLaren et al. 2003). This is a direct result of a higher than average concentrations of crustal radiogenic elements U and Th (McLaren et al. 2003), leading to ⁴He. More restricted areas with high surface heat flow are outboard of the Browse and Perth basins (Cull and Conley 1983); interestingly, the first-order heat flow is relatively low and fairly constant throughout the North West Shelf (Cull and Conley 1983). The relative higher R/Ra in the Browse Basin (Fig. 7) may indicate a local area of higher sub-lithospheric heat flow (Hasterok and Gard 2016). Gases from the Canning Basin have the second highest average helium content with a dominant crustal helium source (Figs 6 and 7) and are in accord with a restricted hot spot in radiogenic heat flow in this region (Hasterok and Gard 2016). A high sub-lithospheric heat flow is also predicted along the eastern−south-eastern edge of Australia in response to much younger Cenozoic tectonism (Cull and Conley 1983; Hasterok and Gard 2016) and concur with natural gases with the highest mantle ³He inputs (R/Ra > 1; Bass, Gunnedah and Otway basins; Fig. 7). A more detailed analysis between the evolution of helium content and R/Ra values in natural gases and heat flow is outside the scope of this paper. Another example is in the Browse Basin where the age of the oil/gas reservoirs creates complexity in discerning the origins of helium in the gas accumulations. Relatively long (many 100 Ma) residence times (Polyak and Tolstikhin 1985) allows for significant dilution of mantle ³He by radiogenic ⁴He, making discerning mantle signatures more difficult. Despite this, some gas samples do indicate a mantle helium component with R/Ra ratios higher than a sole crustal source (Figs 6 and 7). However, gases with 0.05 < R/Ra < 1 could be a complex mixture between radiogenic-, air- and mantle-derived sources but require further source resolution using integration with higher noble gas isotopes (Byrne et al. 2017; and references therein). Browse Basin natural gases with R/Ra < 0.05 are likely to be entirely radiogenic in origin, while some of the highest R/Ra ratios (up to 0.5 Ra) are likely a mix between air and radiogenic sources, with little to no mantle input (Main et al. 2014).

Tongish (1980) found that for USA gases, the highest helium concentrations were found in Paleozoic rocks at depths > 9000 ft (>2743.2 m) and associated elevated inorganic gas contents (>30% nitrogen, <30% carbon dioxide and >0.3% argon). The next section explores these compositional relationships between helium and inorganic components in the Australian natural gases.

Although carbon dioxide is removed in the initial LNG process, its concentration in the natural gas will dilute the helium content and it may determine whether or not the natural gas is economic for LNG. Plotting helium versus carbon dioxide concentrations (Fig. 8) reveals complex associations that need to be considered on a basin-by-basin basis. For the Browse and Cooper basins, there is a weak trend of decreasing ⁴He with increasing carbon dioxide content, suggesting that the carbon dioxide simply acts as a diluent in the reservoir. For the Northern Carnarvon Basin, a 10-fold range in helium (0.01–0.1%) occurs in association with a very wide 400-fold range in carbon dioxide (0.04–16%), indicating a non-association. In the Amadeus Basin, the helium content varies more widely from 0.016% to 0.86% with little change in the low (<0.1%) carbon dioxide content, indicating a non-association. Even at Mt Kitty-1 (Amadeus Basin), where the helium content is 9%, the CO₂ content is only slightly higher at 0.17% with the CO₂ content likely buffered by precipitation of carbonate minerals (McInnes et al. 2017). The highest Australian concentration of helium is found within the Late Proterozoic (Ediacaran) reservoirs of the Amadeus Basin that are below effective carbonate/evaporite seals (Clarke et al. 2014; McInnes et al. 2017; Boreham et al. 2018). Only Corallina-1 (Bonaparte Basin) meets the stringent criteria for both high helium (>0.5%) and high carbon dioxide (>5%; Xu et al. 1991).

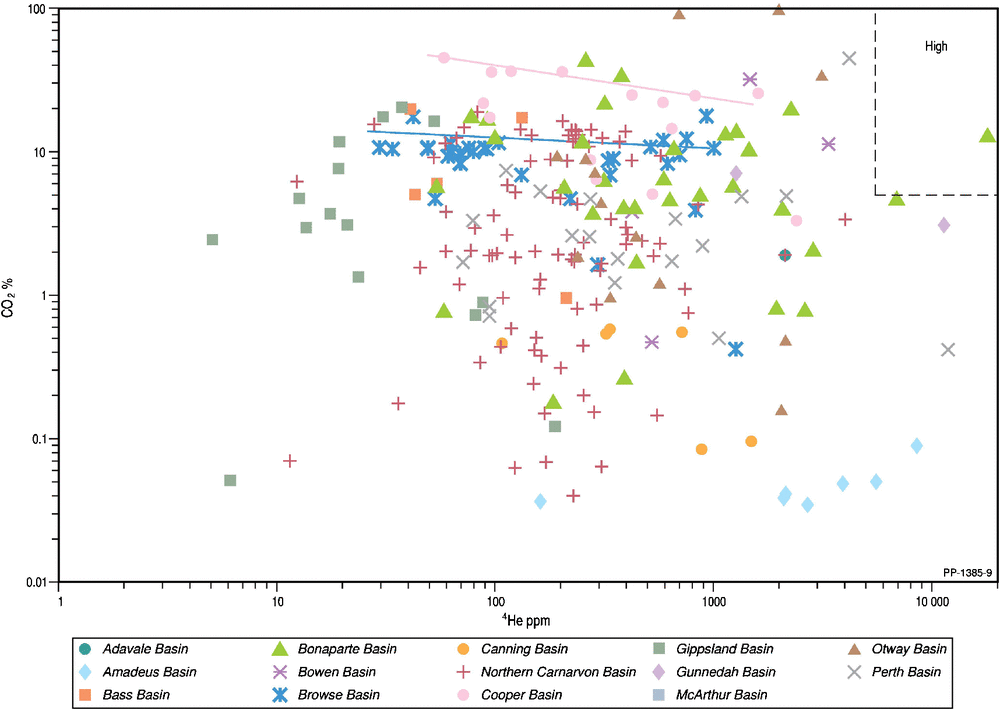

Fig. 8.  Plot of ⁴He concentration (ppm) from MS data versus carbon dioxide concentration (CO₂%) from GC data. Dotted lines represent cut-offs for high helium (>0.5%) and high carbon dioxide (>5%; Xu et al. 1991).

When the R/Ra ratio is plotted against the ³He/CO₂ ratio (Fig. 9), mixing between mantle and crustal helium sources can be considered for some basins (e.g. Browse, Gippsland and Otway basins); however, carbon dioxide loss is likely to be a significant feature of Australian sedimentary basins. Integration of the carbon isotope of carbon dioxide with the ³He/CO₂ ratio (Fig. 10) further supports the loss of carbon dioxide through either dissolution within the formation waters or carbonate precipitation associated with fluid-rock interactions and accompanying ¹³C depletion in the residual gaseous carbon dioxide (Snyder et al. 2001; Watson et al. 2004; Tenthorey et al. 2011). Such depletions in δ¹³C CO₂ (i.e. <10‰) have traditionally been attributed only to increasing organic inputs of carbon dioxide (Boreham et al. 2001; Milkov 2011).

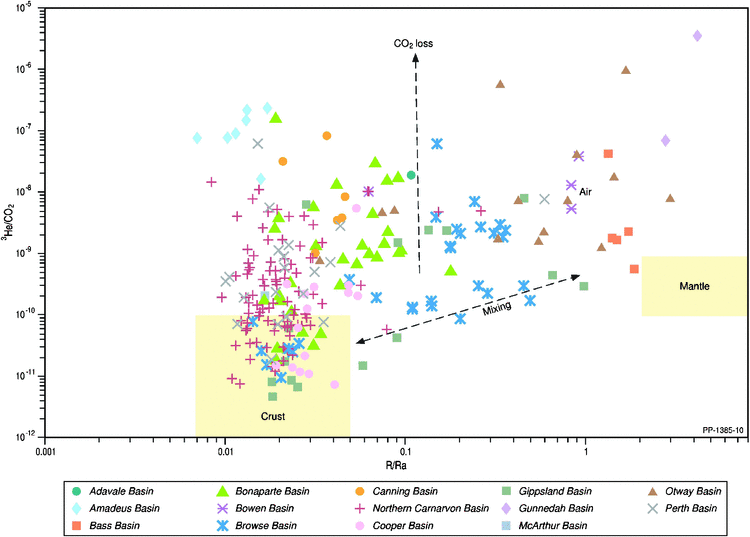

Fig. 9.  Plot of R/Ra ratio versus ³He/CO₂. Shaded areas show overlap with accepted ratios for crustal and mantle sources. Magmatic ³He/CO₂ range from Gilfillan et al. (2008).

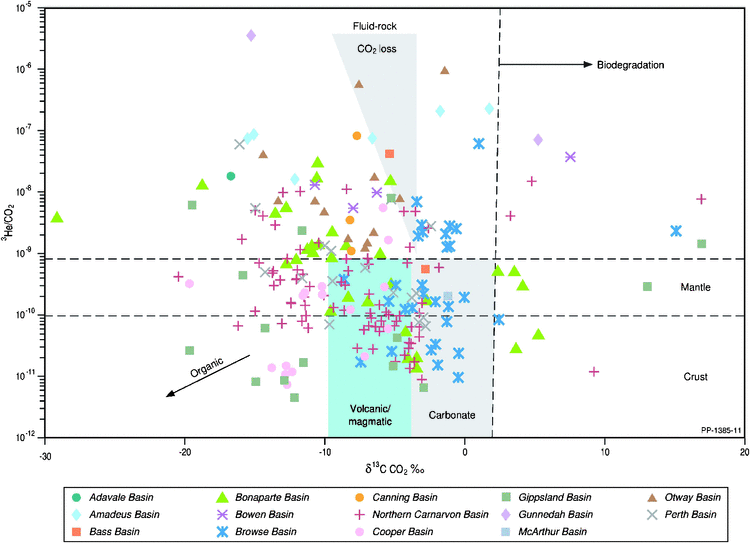

Fig. 10.  Plot of carbon isotopic composition (δ¹³C) of CO₂ (‰) versus ³He/CO₂ ratio. Shaded rectangles show overlap of accepted ratios for carbon isotope of volcanic/magmatic and carbonate sources. Organic sources of CO₂ are generally depleted in ¹³C while methanogenic enrichment in ¹³C is associated with biodegraded gases (Boreham et al. 2001; Milkov 2011). The shaded triangle shows the loss of CO₂ through dissolution or leakage with little to no change in the carbon isotopes and fluid-rock interaction leading to carbonate precipitation and the depletion in ¹³C of the smaller pool of the residual CO₂ (Snyder et al. 2001).

Natural gas samples are commonly thought to display a positive relationship between the presence of increasing nitrogen and helium (Ballentine and Sherwood Lollar 2002; Hunt et al. 2012). Unlike carbon dioxide, nitrogen remains throughout the LNG process and ends up in the tail gas. Therefore, understanding the origin and factors controlling the nitrogen content in natural gas are also important considerations. The relationship between helium and nitrogen is depicted in Fig. 11, where the highest nitrogen content of a natural gas occurs in the Bonaparte Basin (46% in Polkadot-1; even higher nitrogen contents are found in a few gases from the Otway and Cooper/Eromanga basins in a larger set of Australian natural gases from open file sources; Boreham et al. 2001). Only Corallina-1 (Bonaparte Basin), Wilga Park-1 (Gunnedah Basin) and Dunsborough-1 (Perth Basin) meet the stringent criteria for both high helium (>0.5%) and high nitrogen (>15%; Xu et al. 1991). While Ballentine and Sherwood Lollar (2002) stated that gases with ⁴He > 0.1% nearly always contain high nitrogen contents, the Australian natural gases generally show a weak positive correlation between ⁴He and nitrogen and poor correlation within individual basins (Fig. 11), which does not support an overall strong correspondence between nitrogen and crustal, radiogenic helium nor the concept for a dominant deep metasedimentary or crystalline origin for the associated nitrogen (Jenden et al. 1988a, 1988b). Additionally, the stronger positive linear correlation between R/Ra and ³He/N₂ (Fig. 12) is more to do with ³He being in the numerator of both ratios (the plot of ³He versus N₂% (not shown) has a similar poor correlation as with ⁴He versus N₂% (Fig. 11)) than any association of nitrogen with mantle ³He.

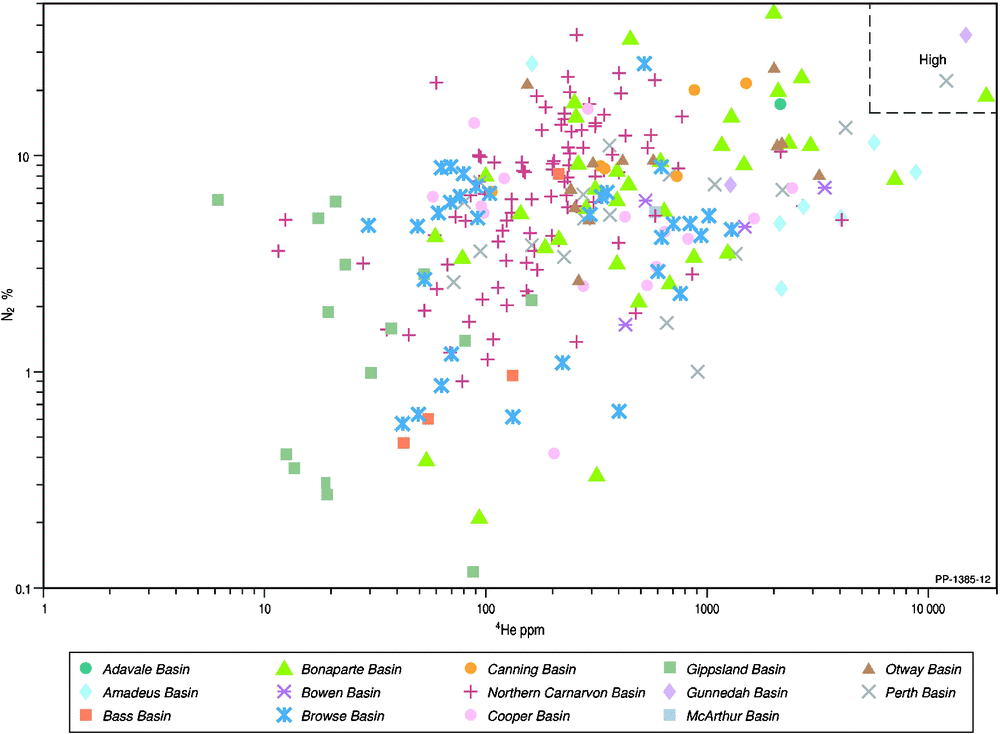

Fig. 11.  Plot of ⁴He concentration (ppm) versus nitrogen concentration (N₂%) from MS data. Dotted lines represent cut-offs for high helium (>0.5%) and high nitrogen (>15%; Xu et al. 1991).

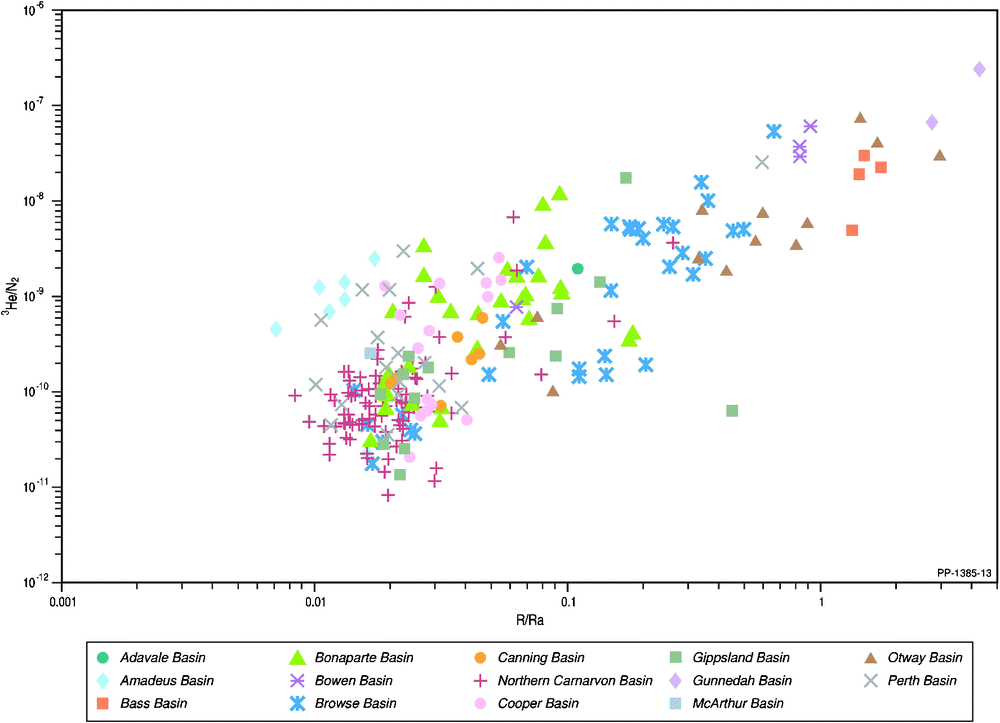

Fig. 12.  Plot of R/Ra ratio versus ³He/N₂ ratio. Note: air is off-scale at (1, 7.13 × 10⁻¹⁴).

Given that the atmospheric nitrogen content and its N-isotopic compositions (δ¹⁵N N₂) have remained conservative for the past 4 Ga (Tolstikhin and Marty 1998), the complementary isotopic composition of nitrogen is a powerful tool in the attribution of organic, inorganic and mixed sources of nitrogen in natural gases (Liu et al. 2016; and references therein). Although the majority of gases shown in Fig. 13 do not have accompanying noble gas isotope data, they are part of the larger Australian gas dataset plotted in Fig. 5, and the overall trends are considered to reflect the basin’s nitrogen isotope systematics. When plotting the nitrogen isotopic composition (δ¹⁵N) of nitrogen versus the nitrogen concentration (Fig. 13a) for the Australian-wide selection of natural gases, the data show a relatively narrow range in δ¹⁵N N₂ from –7.4‰ to 2.3‰, considering the 70‰ range seen globally (Liu et al. 2016; and references therein). It is apparent from the frequency plot of the δ¹⁵N N₂ values (Fig. 13b) that the source for nitrogen is consistent with a thermogenic origin from mature organic matter (organic N) and/or thermal decomposition of ammonium-bearing minerals (inorganic N). However, the highest frequency at 0−1‰ suggests a major atmospheric nitrogen input (Fig. 13c).

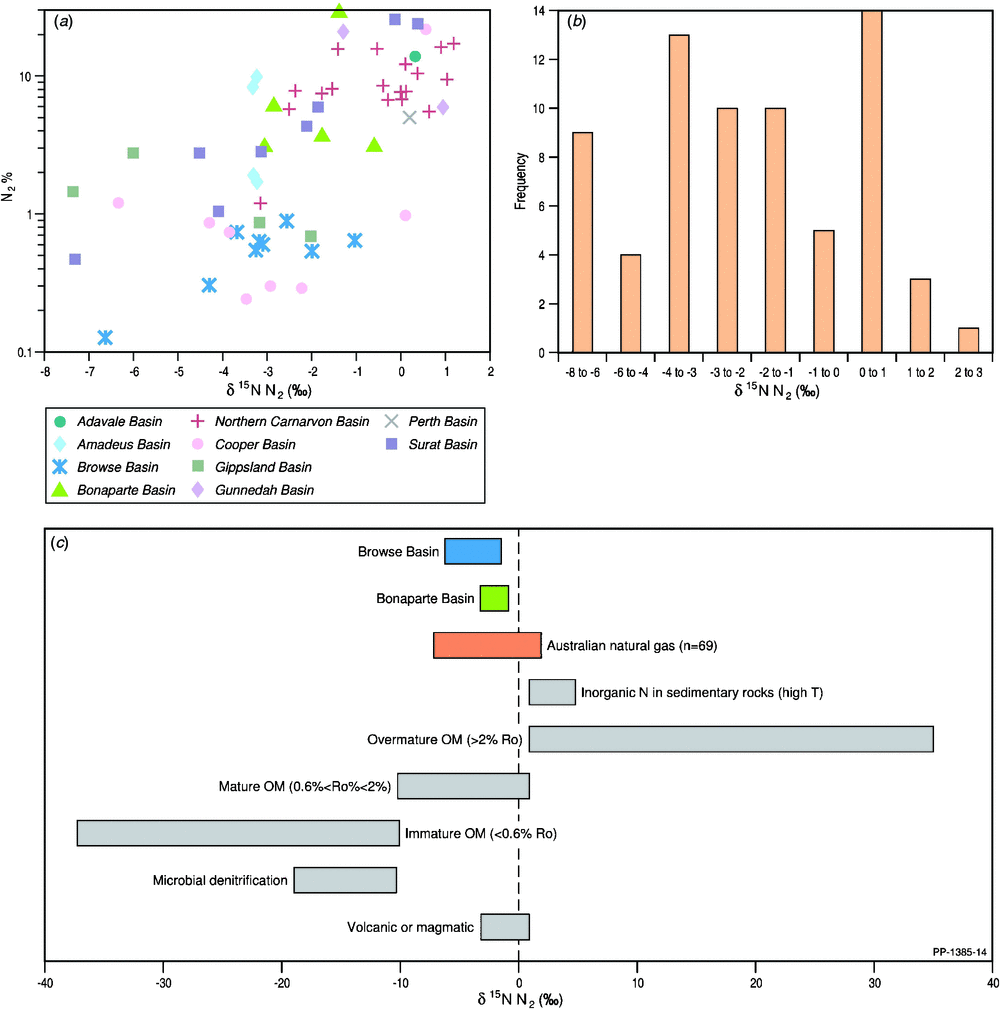

Fig. 13.  Plot of (a) nitrogen isotopes (δ¹⁵N) of N₂ (‰) versus N₂ concentration (%), (b) frequency plot of the δ¹⁵N values and (c) the range in different organic and inorganic nitrogen sources (modified from Liu et al. 2016). OM = organic matter.

The third major helium source input from air has not been thoroughly explored in the above discussion. To further investigate the contribution of atmospheric inputs from either air trapped in the unconsolidated sediments during deposition and/or contact of the natural gas with formation water during migration to and within the reservoir rocks, the two higher noble gases, neon (Ne) and argon (Ar), were analysed. The measured ⁴He/²⁰Ne ratios range from 0.9 in Dory-1 (Gippsland Basin) up to > 100 000 in Big Lake-38 (Cooper Basin), with all the gases being significantly above the air ratio 0.32, indicating that helium in most samples is dominated by non-atmospheric sources. The stable isotopes of neon and argon solely of atmospheric origin are ²⁰Ne and ³⁶Ar. For neon, there are distinct stable isotopic compositions for air, mantle and crustal sources, and their respective end-member neon isotope ratio values are displayed in Fig. 14. For the Australian natural gases, neon is universally dominated by an atmospheric origin with minor input from nucleogenic (crustal) neon (Ballentine 1997; and references therein) (Gilmore 4A natural gas from the Adavale Basin has the highest subordinate nucleogenic input), regardless of the basin and reservoir age from the Paleo−Mesoproterozoic (McArthur Basin) to the Cenozoic (Bass Basin). Additionally, the neon isotope systematics also mainly cluster along the mean fraction line (mfl; Fig. 14), suggesting a strong control by physical migration isotopic fractionation (Sarda et al. 1988 and references therein).

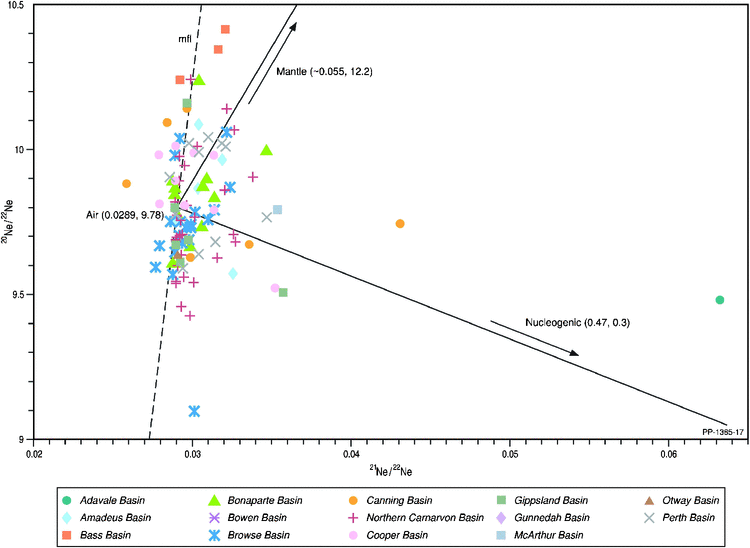

Fig. 14.  Neon isotope ratio plot of ²¹Ne/²²Ne ratio versus ²⁰Ne/²²Ne ratio. End-member values for mantle, air and crustal (nucleogenic) are sourced from Kotarba et al. (2014) and references therein. Crustal neon isotope distribution is controlled by nucleogenic reactions of an α particle (α) or neutron (n) (from the radioactive decay of U and Th) with isotopes of F, O, Na and Mg and the nuclear ejection of a n or α or proton (p) or positron (B⁺) (Ballentine and Burnard 2002; and references therein). The mantle’s neon isotopic composition likely reflects the primitive Earth’s atmosphere, although the reason for the excess ²⁰Ne and ²¹Ne is yet to be fully explained (Sarda et al. 1988). Mass fractionation line (mfl) refers to the mean mass-dependent fractionation corresponding to neon fractionation during fluid migration where it evolves along the dotted line (Poreda and Radicati di Brozolo 1984; Sarda et al. 1988).

In air, the ⁴⁰Ar/³⁶Ar ratio is a constant 295.5 (Ballentine et al. 1991). Thus, the anticipated ⁴⁰Ar_air content can be calculated from the ³⁶Ar content, which further allows quantification of any additional radiogenic source of ⁴⁰Ar (⁴⁰Ar*) produced by the radioactive decay of ⁴⁰K. Hence ⁴⁰Ar_total = ⁴⁰Ar_air + ⁴⁰Ar*, and for natural gases with ⁴⁰Ar/³⁶Ar > 295.5 (for calculation of ⁴⁰Ar* see Fig. 15 caption), ⁴⁰Ar* and ⁴⁰Ar_air can be determined. The proportion of ⁴⁰Ar_air in Ar_total varies from 100% down to <20%, the latter seen in Dingo-3 (Amadeus Basin) and Ladbroke Grove-2 (Otway Basin). Since ⁴⁰Ar* and ⁴He* (for calculation of ⁴He* see Fig. 15 caption) are both radiogenic isotopes, their production ratio is a function of the original ratio of potassium and uranium (K/U), respectively. Fig. 15 shows the cross-plot of ⁴He* versus ⁴⁰Ar*. Although some of the natural gases plot within the predicted ⁴⁰Ar* and ⁴He* (i.e. within the dotted lines in Fig. 15) based on average crustal concentrations of K, U and Th (Zartman et al. 1961), most gases in the individual Australian basins plot outside the predicted range, reflecting a disconnect between their different radioactive mineral (U/Th for ⁴He* and K for ⁴⁰Ar*) sources.

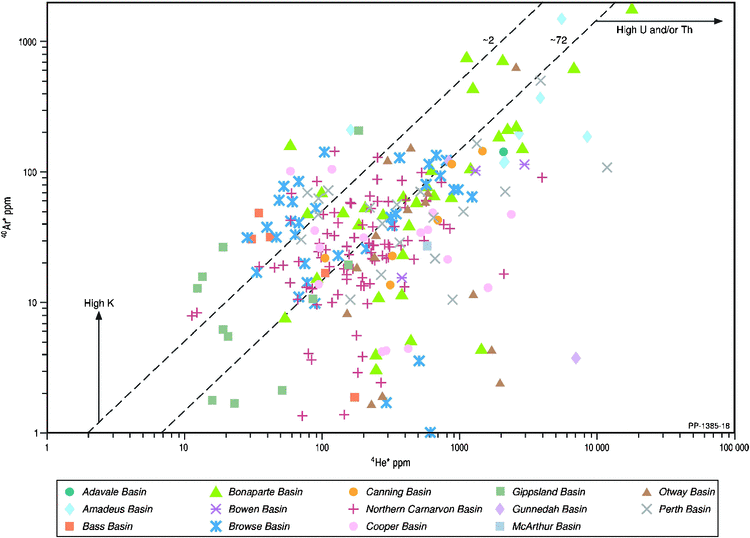

Fig. 15.  Plot of radiogenic ⁴He (⁴He*) versus radiogenic ⁴⁰Ar (⁴⁰Ar*). ⁴He* = ⁴He_total × (1.12 × 10⁻⁵ – (³He/⁴He)_sample)/(1.12 × 10⁻⁵ – 2.8 × 10⁻⁸) cm³ STP (1.12 × 10⁻⁵ and 2.8 × 10⁻⁸ are the ³He contents of mantle and crustal sources (³He_air = 1.39 × 10⁻⁶), respectively, relative to ⁴He), and ⁴⁰Ar* = ⁴⁰Ar_total × (1–295.5/(⁴⁰Ar/³⁶Ar_sample)) cm³ STP (Ballentine et al. 1991). Gradient lines follow predicted concentrations of ⁴He* and ⁴⁰Ar* from average values of U and Th, and K, respectively, from continental rocks for gas accumulation through various timescales from when the Earth was formed 4.5 Ga ago (Zartman et al. 1961).

The N₂/⁴⁰Ar_air ratios for Australian natural gases range from around 1 to 3878, with the highest value in Dingo-3 gas, Amadeus Basin. Input of nitrogen from ASW and atmospheric sources would be expected to have values between ~37 and 83, although values two to three times higher than this are commonly observed in hydrocarbon- and CO₂-rich natural gases (Zartman et al. 1961), while most volcanic sources extend N₂/⁴⁰Ar_air ratios to 300 (Jenden et al. 1988b). Approximately 86% of Australian natural gases have N₂/⁴⁰Ar_air values <300. Therefore, while the nitrogen in Australian natural gases has a quantifiable high atmospheric input (i.e. ASW), there is notable contribution from non-atmospheric sources in many samples. The non-atmospheric sources (N_2excess) can be estimated using the formula N_2excess = N_2sample – (³⁶Ar_sample × (N₂/³⁶Ar)_ASW) with N_2excess ranging from 5% to 100% (average 79%) of total nitrogen. As a consequence, the narrower isotopic range in δ¹⁵N N₂ for the Australian natural gases (Fig. 13) is partially a result of attenuation towards δ¹⁵N N_2air (0‰) with increasing air input. Consequently, the δ¹⁵N nitrogen for other contributing nitrogen sources most likely have a wider N-isotopic range and, for an organic nitrogen source, it is in accord with the wide range in gas maturities (Figs 3 and 4).

Ironically, helium was first extracted from LNG over a century ago with the latter being discarded for lack of market (Flower 2012). However, not long after the value of LNG was recognised (around 80 years ago), there eventuated the opportunity to produce helium from the by-product of the cryogenic LNG process (Flower 2012). Here, the recovery efficiency of the non-condensable, helium-enriched tail gas by-product is high throughout the process of carbon dioxide removal, collection of the natural gas liquids and containment of the LNG. Pilot studies using a non-cryogenic pressure swing absorption process offer an alternative pathway, although costs are high and helium recovery efficiencies are only around 60% (Das et al. 2012).

In the Australian context, the locations of operating and committed/proposed LNG projects, together with their feed-in gas accumulations, are shown in Fig. 16. Based on publicly available information, remaining natural gas resources for each LNG project are listed in Table 2. The wells used to calculate the average concentrations of helium for each LNG project are also plotted in Fig. 16 and the average contents (%) of nitrogen, carbon dioxide and helium are listed in Table 3. LNG is forming an increasing proportion of Australia’s total gas production; in 2016, LNG was 60.3% of the total gas production of 3437 Bcf (97.2 Bm³) from conventional and CSG resources (Department of Environment and Energy 2017). By multiplying the remaining natural gas resources (Table 2) by the average helium percentage (Table 3), the remaining helium resources can be calculated for each LNG project (data are listed in Table 3). The summed total of the ultimate helium recovery is 59.0 Bcf (1.67 Bm³), which is included in Fig. 1b, giving Australia potentially a substantial stake in global helium prospectivity. In 2015, the world’s helium production was 5.51 Bcf (156 MMm³), with only a slight drop in the 2016 estimate, and Australia’s helium production was steady at 0.14 Bcf (4.0 MMm³) (USGS 2017b) from the only helium extraction plant in Darwin.

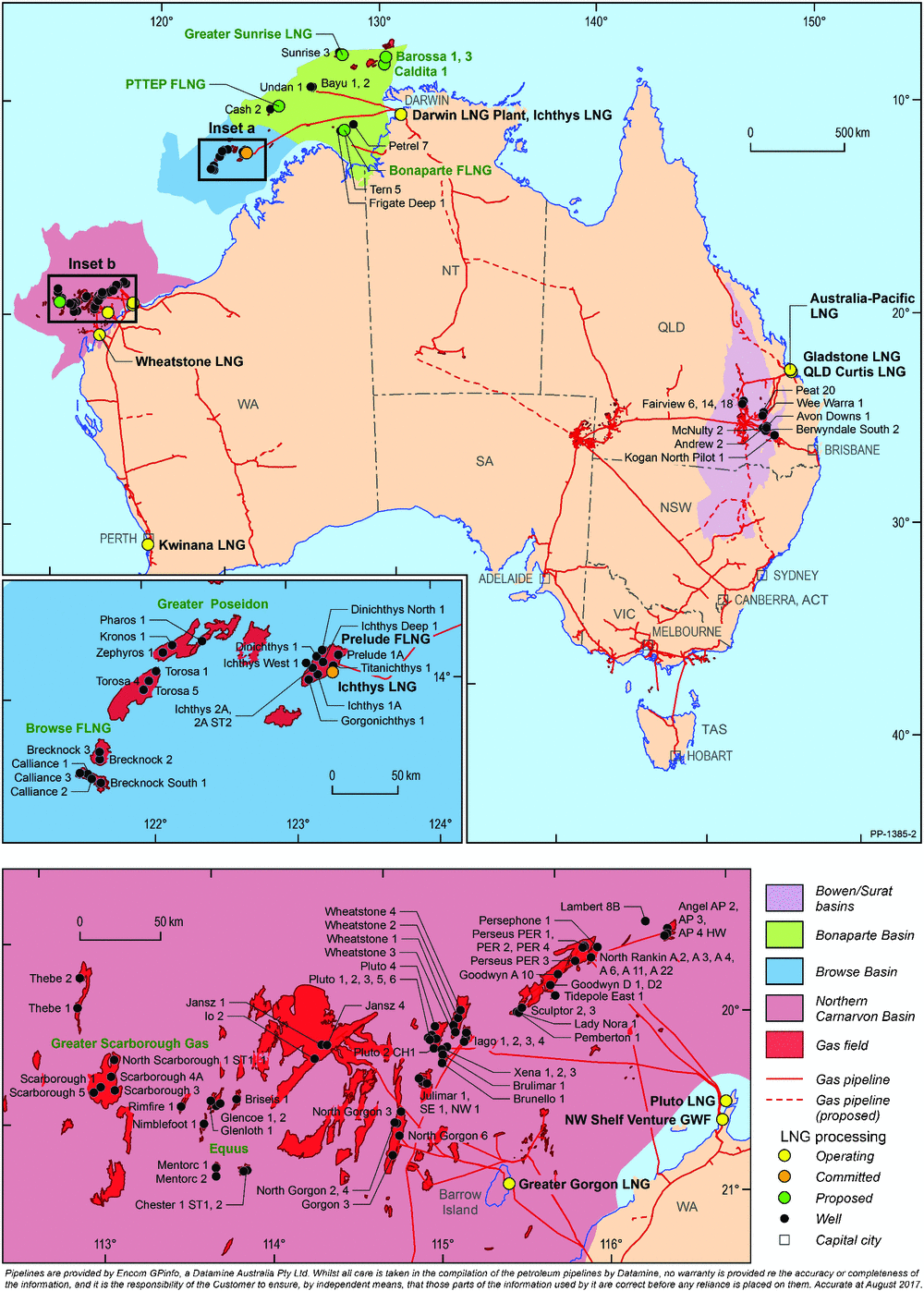

Fig. 16.  Location map of LNG operating, committed and proposed plants together with outlines of gas accumulations and wells therein that are used to provide average He % and average N₂% in Table 3.

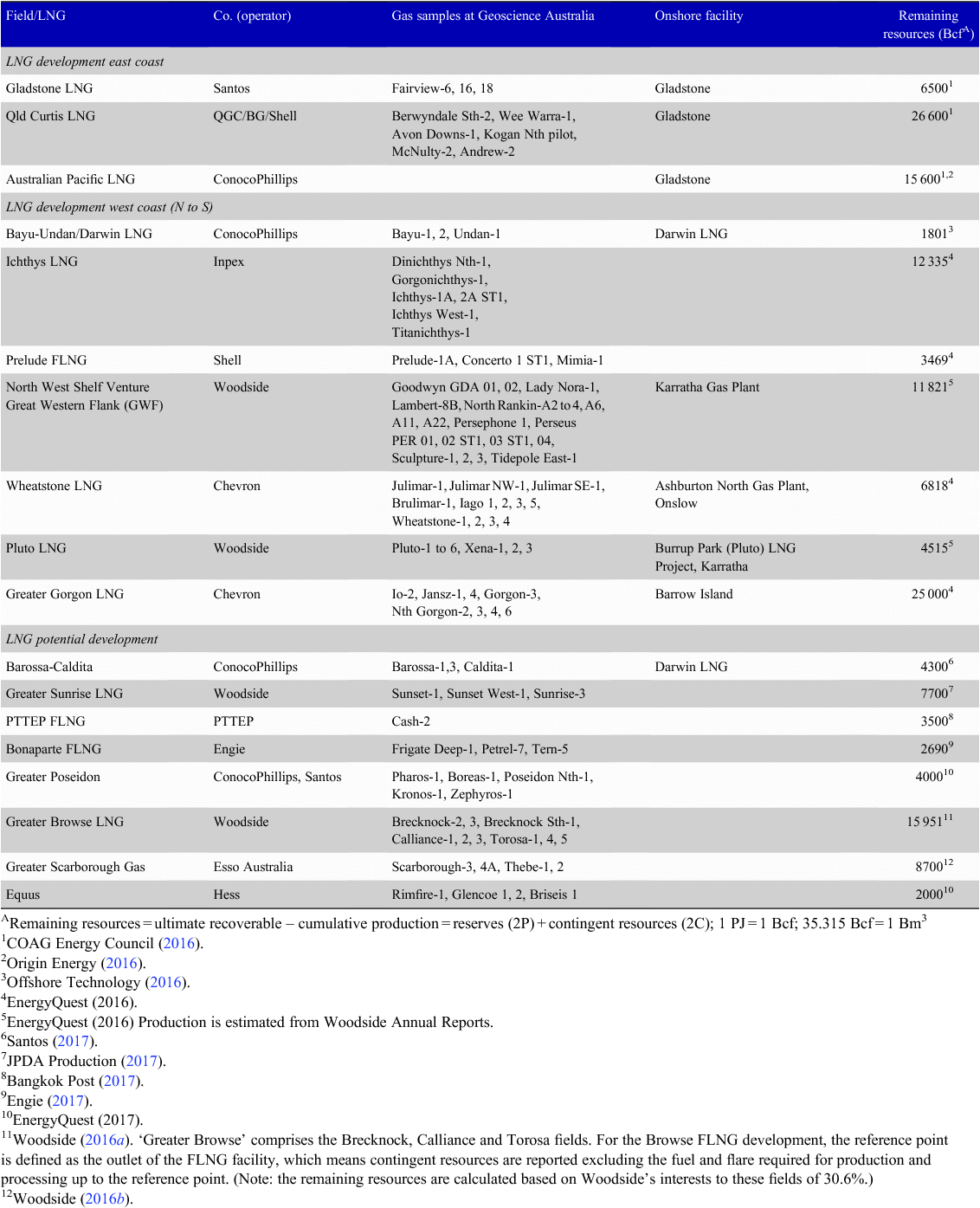

Table 2.  Summary of operating, committed and proposed Australian LNG developments with estimated remaining resources

Table 3.  Summary of gas field average He, N₂ and CO₂ contents, estimated LNG tail gas He% and ranking from 1 to 18 of LNG projects in Table 2
*No. of samples ≥ no. of well in Table 2 due to multiple tests in a single well

Using the analysis of the co-mingled feed-in gas to the LNG plants in Darwin and Gladstone (Fig. 16), it was determined that, on average, He and N₂ are conserved throughout the LNG industrial processing. The N₂/He ratio of the co-mingled feed-in gas to the Darwin LNG plant is very similar to the N₂/He ratio of the tail gas (feed-in He = 0.1% and N₂/He = 37.3 and tail gas He = 3.0% and N₂/He = 31.1). A similar result is obtained for the LNG plant at Gladstone, in which the LNG feed-in gas has values of He = 0.017% and N₂/He = 80.2 and the tail gas has He = 1.1% and N₂/He = 87.7.

The data from the Australian LNG plants’ gases compare favourably with the amount of helium and the N₂/He ratio derived from averaging the gas composition from the individual produced wells (Table 3 and Fig. 16), with Bayu-Undan averaging He = 0.13% and N₂/He = 28.6 and Gladstone averaging He = 0.03% and N₂/He = 85.7. Therefore, all other LNG examples in Table 3 are based on this ‘no loss’ determination with a wide range in N₂/He from 7.6 to 752 and a calculated helium content in the tail gas from 0.21% to 11.22% (in Table 3 note that the tail gas was considered to contain 3% methane as the only other component (see footnote in Table 3)). Notably, 11 of the 18 LNG projects have tail gas helium contents >1%, which is at the lower helium concentration limit for global helium processing in 2016−2017 (Linde 2017). The estimated helium enrichment factor (%He tail ÷ %He initial) ranges from a low 12.4 at Pluto in the Northern Carnarvon Basin to a very high 162 and 299 in the Browse Basin for Prelude and Ichthys, respectively, and an extremely high 660 in Barossa-Caldita, Bonaparte Basin. Interestingly, for the helium extraction plant using Qatar’s North Field natural gas composition (0.04% He), the LNG helium enrichment factor is even lower at 10; however, the giant helium resource of 360 Bcf (10.2 Bm³) more than compensates for the unfavourable chemistry (Daly 2005).

A ranking seriatim can be applied that uses the average abundance of helium (He%) in the tail gas together with the remaining helium resource volume for each LNG catchment area. Thus, a relative helium LNG resource value unit (HLRVU) is defined by the multiplication of the remaining helium resource by the He% tail gas. This is a similar approach to the relative helium resource value unit (HRVU), defined by the multiplication of the remaining helium resource by the He% initially in the natural gas (Cook 1979). The HLRVU takes into account the nitrogen content of the natural gas while HRVU does not (Table 3). From the HLRVU, the top five ranked LNG projects (Table 3) come from the Bonaparte, Browse and Northern Carnarvon basins, with the potential Greater Sunrise development (Bonaparte Basin) being ranked first, the Ichthys development (Bonaparte Basin) ranked second, followed by a near identical ranking between the producing helium extraction plant in Darwin, using the feed-in gas from the Bayu-Undan accumulation (note: the ranking is based on the ultimate recoverable) in the Bonaparte Basin, and the Goodwyn–North Rankin and tie-back accumulations of the North West Shelf Venture (note approximately half of the ultimate recoverable has already been produced) in the Northern Carnarvon Basin. The Prelude LNG is ranked fifth. When using the HRVU, it should be noted that Greater Sunrise remains on top, the Ichthys and Bayu-Undan rankings are reversed, the North West Shelf Venture is forth, while Prelude is ranked lower (Table 3). Although the Greater Sunrise accumulation does not have the highest helium resource, its greater helium content (average 0.21%), together with moderate nitrogen content, leads to its excellent HLRVU. The greater Ichthys gas accumulation has an even lower helium content (average 0.065%); however, this negative is more than compensated for by the large resource volume and low nitrogen content in the LNG feed-in gas.

The wide ranging gas compositions in different wells and formations in a given gas field (Table 3) may guide the timing of LNG development if linked with helium extraction. For example, any future input from the Barossa-Caldita gas accumulation (ConocoPhillips 2018; Fig. 16) to the Darwin LNG feed-in gas will enrich the helium content of the LNG tail gas (average helium content in the Barossa-Caldita tail gas is extremely high at 11.2% and N₂/He = 7.6; Table 3). However, the proportion of LNG tail gas derived from a Barossa-Caldita feed-in component will be lower than from a Bayu-Undan feed-in component due to the former’s very low initial nitrogen content (0.203%), and together with the projected LNG production, leads to a HLRVU ranking of six for Barossa-Caldita (Table 3). Interestingly, the just completed analysis of the Ascalon-Saratoga gas accumulation (Fig. 2, inset 1d; situated between the Bayu-Undan and Ichthys offshore pipelines, Fig. 16) with a 3.2 Tcf contingent gas resource (Octanex 2017) and average helium and nitrogen of 0.14% and 3.27% respectively, offers a future alternative feed-in gas to LNG processing in Darwin. With a calculated LNG tail-gas of 3.9% helium together with a similar 4.4 Bcf ultimate recoverable volume of helium compared to the original Bayu-Undan gas accumulation, Ascalon-Saratoga if developed should ensure longevity of downstream helium processing in Darwin. Furthermore, in the Ichthys gas field, the ~two-fold difference in carbon dioxide content between the Brewster and Plover reservoirs (Table 3) may determine the order of gas production, as it has in the Greater Gorgon development with the Jansz and Io gas accumulations containing low abundances of carbon dioxide (average CO₂ = 0.14% and 0.31%, respectively; Table 3), supplying the early LNG trains in the Barrow Island LNG facility followed later by the ‘Gorgon’ gas fields with high carbon dioxide content (average CO₂ = 13%; Table 3).

Helium resource potential should also be considered for gas accumulations that service the domestic market, which uses ~40% of the total natural gas production (Department of Environment and Energy 2017). As an example, the offshore Blacktip gas accumulation (Fig. 2) in the southern Bonaparte Basin supplies gas to the Northern Territory via an onshore gas processing plant (ENI 2018). With helium and nitrogen contents of 0.060% and 9.18% respectively, giving a calculated tail gas of 0.63% helium, and together with a gas reserve of 1.2 Tcf (Oil&Gas Journal 2009) it slots into Table 3 with a HLRVU in 16th place.

A further understanding of the origin and distribution of helium in Australian basins is still required to enable an assessment of whether helium can play a bigger role in the upstream and downstream gas economy where conservation is encouraged and emissions are reduced. Simply collecting LNG tail gas may not be economic in the short-term, but a collective commitment to conserve helium resources would be an investment in the future. For example, a common storage repository for tail gas from LNG and domestic gas projects with additional helium upgrading may achieve higher helium concentrations in Australia, such as recorded at Qatar I/II (29%) and at the USA’s BLM Cliffside helium reserve (32%) (Table 1), and hence, become more attractive for further exploitation.

Helium in Australian natural gases is generally dominated by crustal sources with the older (Late Paleozoic−Proterozoic) reservoirs commonly having the highest crustal ⁴He input. Natural gases with the highest ³He inputs are concentrated in eastern Australia in direct response to younger tectonic/magmatic events. The concentration of helium is linked with the sealing efficiency of the reservoir with evaporitic rocks forming the most competent seals resulting in high helium concentrations. However, this is moderated by the input of large volumes of natural gas from primary and secondary cracking reactions over a wide maturity range, resulting in Australian natural gases generally having low helium (<0.1%) contents. Helium is not generally source-associated with inorganic carbon dioxide and nitrogen gases, with the latter having a significant source input from ancient air-saturated water.

Current and future LNG projects across Australia offer the opportunity to deliver a helium-enriched by-product suitable for economic exploitation through downstream helium extraction. Additionally, natural gas for domestic use also provides a yet to be tapped helium extraction potential. Australia has large volumes of processed natural gas containing variable helium concentrations, with many above the lower limit of 0.04% helium in the raw gas used for helium extraction in other parts of the world. This study has shown that there is no significant loss of helium and nitrogen throughout the LNG process. This, together with estimated natural gas field remaining resources, resulted in a helium volumetric analysis whereby the Greater Sunrise (Bonaparte Basin), Ichthys (Browse Basin) and Goodwyn–North Rankin North West Shelf Venture (Northern Carnarvon Basin) gas accumulations potentially have a higher untapped value in helium extraction (i.e. resulting from current and future LNG production) compared with Australia’s sole commercial onshore helium extraction facility in Darwin, based on Bayu-Undan (Bonaparte Basin) natural gas. Of particular importance is that 14 of the 18 current and proposed/potential LNG projects also offer a helium-rich tail gas (>0.5% He) that could be considered suitable for helium extraction with appropriate technologies and economic environment for onshore and/or offshore helium production facilities. Hence, Australia has the potential for significant growth in the extraction of helium from natural gas to provide a reliable supply of this critical commodity now and into the future.
