H₂-Generation from Alcohols by the MOF-Based Noble Metal-Free Photocatalyst Ni/CdS/TiO₂@MIL-101*

The dehydrogenation of alcohols is a fundamental reaction in sustainable chemistry.^[1] Alcohols can be obtained via pyrolysis and hydrogenation from lignocellulose,^[2] an abundantly available, indigestible, and barely used biomass.^[3] Thus, alcohols are a promising renewable carbon feedstock and the development of alcohol refunctionalisation reactions is the key to its use.^[4] Alcohols are rather unreactive and dehydrogenation is an elegant way of activating them. The oxidised form, carbonyl compounds, can undergo condensation reactions permitting the formation of C–C or C–N multiple bonds. The synthesis of imines from alcohols and amines introduced by Milstein and co-workers is an example of broad interest for such a C–N bond formation reactions.^[5] Our group has developed the synthesis of aromatic N-heterocyclic compounds from alcohols in which C–N and C–C multiple bond formation takes place concertedly.^[4,6–9] We expected that a photocatalyst able to mediate C–N bond formation via dehydrogenative coupling under very mild reaction conditions is highly desirable to significantly extend the applicability of existing thermally operating noble metal-free catalysts for such reactions.^{[5b,6b,8b-c,10]}

Here, we report on a photocatalyst that mediates visible light-driven imine synthesis from alcohols and amines. This C–N multiple bond formation takes place via dehydrogenation of alcohols under very mild conditions without sacrificial electron donors (alcohol splitting). Our noble metal-free photocatalyst consists of a CdS/TiO₂ heterojunction prepared on a porous support that is decorated with co-catalytic Ni nanoparticles. The metal–organic framework (MOF) MIL-101 (Cr)^[11] was used as the porous support material stabilising the photocatalytic system.^[12] We demonstrate the acceptorless dehydrogenation of alcohols by splitting into hydrogen and carbonyl compounds at room temperature with a broad substrate scope to generate aldehydes and dialkyl, diaryl, and aryl-alkyl ketones. Visible light-driven alcohol dehydrogenation without electron donors is rarely found in the literature^[13] and often requires aqueous media, including additives.^[14] Aqueous media are disadvantageous regarding condensation steps, which are needed in many dehydrogenative coupling/condensation reactions.

We expected that the arrangement of CdS and TiO₂ nanocrystals on a suitable MOF would be an elegant way to create heterojunction systems with efficient charge carrier separation and high photocatalytic activity. The pores of the MOF can be selectively loaded with precursor molecules to control the size and amount of the different nanocrystals without applying surface blocking ligands. MIL-101 (Cr) was chosen because of its stability during solvothermal modifications and its large pore volume. It was prepared according to a procedure described previously with an average crystallite size of 300 nm (Fig. S1, Supplementary Material).^[15] This crystallite size is optimal regarding catalytic performance. The crystallites are large enough to ensure efficient separation for reusability and small enough to have a sufficiently large outer surface for modification with light harvesting materials. We recently reported a synthesis protocol of crystalline TiO₂ (anatase) on the surface of MIL-101 crystallites leading to a core–shell morphology.^[12] Titanium(iv) isopropoxide [Ti(OiPr)₄)] was infiltrated into the pores of MIL-101 by gas-phase loading. The subsequent hydrolysis of the Ti precursor led to the formation of amorphous TiO₂ inside the cavities of MIL-101. The crystallisation of TiO₂ (anatase) on the surface of MOF crystallites was performed under hydrothermal conditions. The MIL-101 core is crucial since the material collapses by removing the support of the photocatalytic system.^[12] In this work, the resulting TiO₂@MIL-101 material was modified with CdS nanocrystals under solvothermal conditions using cadmium acetate dihydrate and dimethyl sulfoxide as precursors to yield CdS/TiO₂@MIL-101.^[16] MIL-101 serves as structure-directing centre to form a dense photoactive shell. Thereby, the MOF core offers a platform for the growth of CdS and TiO₂ nanocrystallites covering the outer surface of single MIL-101 crystallites. Finally, we decorated the core–shell material with homogeneously distributed nickel nanoparticles using bis(cyclopentadienyl)nickel(ii) [Ni(Cp)₂] as the volatile Ni precursor. The Ni/CdS/TiO₂@MIL-101 photocatalyst and the process of charge carrier separation between the semiconducting materials is illustrated in Scheme 1. The TiO₂ and CdS particles form a type II heterojunction at their interface where CdS serves as light absorbing component for the visible spectrum. The directed electron transfer from the conduction band of CdS into that of TiO₂ is a well understood process.^[17] We believe that the enhanced photocatalytic efficiency of a MOF-supported CdS/TiO₂ heterojunction is due to a reduced charge recombination rate as described in the literature. Metallic Ni nanoparticles promote the separation of charges, since the electrical potential gradient at the Ni/semiconductor interface enhances the electron transfer.^[18] Consequently, the charge carriers initiate spatially separated redox reactions, since they are distributed over three different components. The nanoparticles of the non-noble metal Ni act as electron reservoirs and, thus, as a co-catalyst for H₂ liberation.

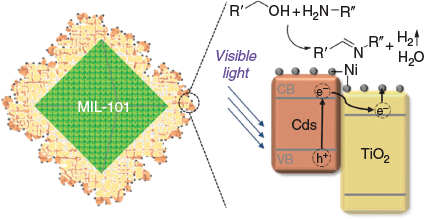

Scheme 1.  Illustration of the Ni/CdS/TiO₂@MIL-101 material with a core–shell morphology. The MOF-supported Ni/CdS/TiO₂ heterojunction system is an efficient photocatalyst for the dehydrogenative coupling of alcohols and amines under visible light illumination.

The initial specific surface area of MIL-101 decreased perceptibly during the generation of TiO₂ and CdS, as investigated by nitrogen physisorption measurements (Fig. S2, Supplementary Material). Only a minor reduction of the specific surface area was observed after the modification with nickel. Crystalline TiO₂ (anatase) and CdS (cubic) were identified by X-ray powder diffraction (XRD) analysis (Fig. S3, Supplementary Material). The characteristic reflexes between 2° and 20° (2θ) indicate the preserved structure of MIL-101. X-Ray photoelectron spectroscopy (XPS) analysis confirmed the presence of TiO₂ and CdS. Signals of Ni⁰ and Ni^II were observed in the Ni 2p spectrum. The presence of Ni^II can be attributed to the formation of nickel(ii) hydroxide when exposed to air during sample handling (Fig. S4, Supplementary Material). We determined the elemental composition of the materials by inductively coupled plasma–optical emission spectrometry (ICP-OES) measurements (Table S1, Supplementary Material). The Ni/CdS/TiO₂@MIL-101 material comprised 3.6 wt-% Ni, 18.8 wt-% CdS, and 26.0 wt-% TiO₂. Diffuse reflectance ultraviolet-visible spectra in the range from 450 to 800 nm show an increased light absorption for TiO₂@MIL-101 and CdS/TiO₂@MIL-101 in comparison to MIL-101 (Fig. S5, Supplementary Material). The modification with CdS resulted in a distinctive edge for CdS/TiO₂@MIL-101, which is comparable to the absorption of cubic CdS. We investigated the size and shape of the Ni/CdS/TiO₂@MIL-101 crystallites by transmission electron microscopy (TEM) and high-angle annular dark-field scanning TEM (HAADF-STEM) measurements (Fig. 1). The typical octahedral shape and the homogeneous size distribution of the MIL-101 crystallites was also observed for Ni/CdS/TiO₂@MIL-101. Energy dispersed X-ray maps demonstrate the uniform arrangement of TiO₂, CdS, and Ni around single MIL-101 crystallites. The interface between the crystalline semiconductors CdS and TiO₂ was verified by assigning characteristic lattice planes of adjacent semiconductor particles. Nickel was located on CdS and TiO₂ and showed a minimal tendency for agglomeration (Fig. S5, Supplementary Material). We investigated the TiO₂@MIL-101 and CdS@MIL-101 materials by TEM measurements to determine the size of the CdS and TiO₂ crystallites formed on the surface of MIL-101 (Fig. S7, Supplementary Material). The average particle size was ~35 nm for TiO₂ and 20 nm for CdS.

Fig. 1.  (a) TEM image of Ni/CdS/TiO₂@MIL-101. (b–l) HAADF-STEM analysis of Ni/CdS/TiO₂@MIL-101 with representative energy-dispersed X-ray element maps. (k) Characteristic lattice planes for crystalline cubic CdS and anatase TiO₂.

Time-resolved photoluminescence (TRPL) studies on photocatalytic systems allow a deeper understanding of photosynthetic electron dynamics between semiconductor materials and metal nanoparticles.^[19] We confirmed the directed electron transfer process from excited CdS across the heterojunction interface to TiO₂ and further to Ni nanoparticles by TRPL studies on MIL-101 supported catalysts. The photoluminescence lifetime of bare CdS@MIL-101 corresponds to the recombination rate of electrons and holes after optical excitation. The presence of TiO₂ and Ni opens up additional relaxation channels of the excited CdS through the directed electron transfer induced by the potential gradient at the CdS/TiO₂ and Ni/semiconductor interface. Thus, the photoluminescence lifetime of CdS, which can be calculated from the linear range of time-correlated single photon counting (TCSPC) traces in semi-log representation, is reduced (Fig. 2; Table S2, Supplementary Material). The charge carrier separation across three different catalyst components leads to the enhanced photocatalytic activity of Ni/CdS/TiO₂@MIL-101. To extend the insight into the electron transfer between CdS and metallic species synchrotron-based X-ray absorption spectroscopy and photo-electrochemical characterisation could be combined.^[20]

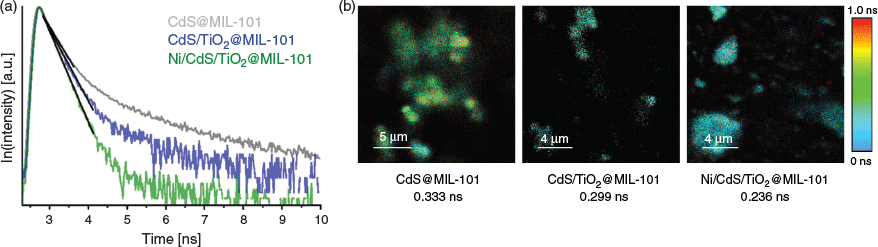

Fig. 2.  TRPL studies of MIL-101 supported catalysts confirmed the directed electron transfer from excited CdS to TiO₂ particles and Ni nanoparticles. (a) TCSPC traces of CdS@MIL-101, CdS/TiO₂@MIL-101, and Ni/CdS/TiO₂@MIL-101 in semi-log representation with fits to the linear range (black lines; Table S2, Supplementary Material). (b) Microscope images of fluorescing CdS@MIL-101, CdS/TiO₂@MIL-101, and Ni/CdS/TiO₂@MIL-101 after optical excitation. The colour encodes the photoluminescence lifetime at each spatial point as indicated by the side bar. The photoluminescence lifetime of excited CdS is calculated from the slope of the linear fit function. The values of the photoluminescence lifetime have to be compared relatively, since the instrument response function (IRF) has not been taken into account in the data analysis.

The photocatalytic liberation of hydrogen via the oxidation of alcohols leading to carbonyl compounds was performed under argon atmosphere at room temperature without additives or acceptor molecules. A 50 W blue LED (470 nm) was used as a visible light source (Fig. S9, Supplementary Material). The dehydrogenation of benzyl alcohol was investigated as a model reaction. Acetonitrile was identified as the most suitable solvent and a loading of 4 wt-% Ni showed the highest activity (Tables S3 and S4, Supplementary Material). We investigated the photocatalytic activity of CdS/TiO₂@MIL-101 modified with the noble metals Pd, Pt, and Au as co-catalysts to ensure the superior performance of our Ni/CdS/TiO₂@MIL-101 catalyst. The Ni-modified catalyst system showed the highest activity in alcohol splitting (Fig. S10a, Supplementary Material). In combination with CdS, the noble metal Pt is especially used as co-catalyst for hydrogen evolution reactions.^[21]

A detailed, microscopic understanding of the mechanism of such dehydrogenation reactions is a formidable task that is beyond the scope of this work. However, one straightforward first step towards understanding differences between Ni and noble metals as co-catalysts can be taken computationally. Of the three experimentally tested metals (Pd, Pt, and Au), we chose Pd as the paradigm noble metal catalyst for the comparison with Ni. Choosing Pd is motivated by the observation that similar metal particle geometries are stable for Ni and Pd, so binding properties can be readily compared. With the help of density functional theory (DFT) calculations, we checked whether there is a difference in the binding of benzyl alcohol to the metal particles using a molecular model consisting of a 13-atom metal particle and one benzyl alcohol molecule. We chose the 13-atom clusters, since they form stable structures^[22] and can build an icosahedral geometry. The latter is one of the smallest possible faceted structures and, therefore, can be interpreted as a small model system for the binding to a faceted metal nanoparticle. We obtained the geometrical and electronic structure using the TURBOMOLE^[23] code. Fig. 3 depicts the lowest energy, i.e. strongest bound, conformation in which the alcohol binds to the Ni₁₃ and Pd₁₃ cluster. Details of the computational procedures are reported in the Supplementary Material (see Theoretical Procedures). We paid particular attention to the fact that d-electron metals pose special challenges to many exchange-correlation approximations.^[24] Reassuringly, our calculations with different density functionals consistently show that benzyl alcohol binds more strongly to Ni₁₃ than to Pd₁₃ by several hundred meV (Table S10, Supplementary Material). We therefore consider this trend as reliable. We see this calculation as one first, small step to corroborate the plausibility that Ni shows a different performance as a co-catalyst than Pd. Extensive further computational work, which is beyond the scope of the present manuscript, would be needed to reveal the detailed mechanism.

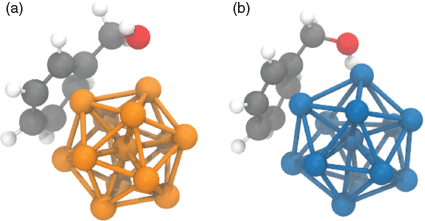

Fig. 3.  Lowest energy geometries obtained from Born-Oppenheimer DFT molecular dynamics simulations in which a benzyl alcohol molecule binds to a 13 atom Ni particle (a) and a 13 atom Pd particle (b). See the Supplementary Material for computational details.

The beneficial contribution of the heterojunction between the semiconductors was demonstrated by the higher activity of CdS/TiO₂@MIL-101 in comparison to CdS@MIL-101. We also demonstrated the favourable effect resulting from the support of Ni/CdS/TiO₂ on MIL-101 as compared to pure Ni, CdS, TiO₂, and Ni/CdS/TiO₂. All materials without cadmium sulfide as the light-absorbing component showed no activity under visible light illumination (Table S5, Supplementary Material). The reusability of Ni/CdS/TiO₂@MIL-101 was confirmed by performing ten successive runs without a remarkable loss of photocatalytic activity (Fig. S10b, Supplementary Material). The material was analysed by TEM and XRD measurements after the last run to demonstrate the structural integrity (Fig. S11, Supplementary Material). A light on/off experiment was performed to examine whether the dehydrogenation of benzyl alcohol is indeed a visible light-mediated reaction (Fig. S12, Supplementary Material). The amount of H₂ released during the reaction was only increased under illumination. We further checked whether hydrogen is released in equimolar amounts during the photocatalytic reaction for several substrates using methane as an internal standard (Table S7, Supplementary Material). Performing the splitting of alcohols under argon atmosphere is crucial for high yields and the generation of molecular hydrogen (Table S7, Supplementary Material). Our Ni/CdS/TiO₂@MIL-101 photocatalyst can split a broad range of alcohols 1 forming the corresponding aldehydes, aryl-alkyl, diaryl, and dialkyl ketones 2 (Table 1). A variety of functional groups was well tolerated, including halogens, methoxy, hydroxy, trifluoromethyl, and amino groups. In addition, hydrogenation-sensitive functionalities, such as nitrile and nitro groups, and C=C bonds can be tolerated selectively. We converted a total of 38 alcohols into the respective carbonyl compounds in good to excellent yields (Table 1; Table S6, Supplementary Material).

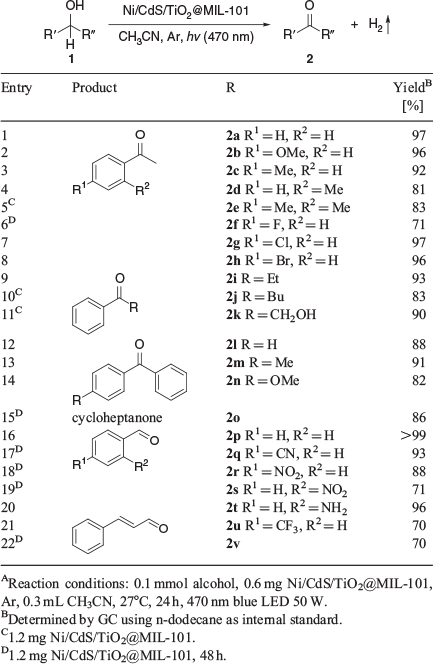

Table 1.  Photocatalytic dehydrogenation of aryl, aryl-alky, diaryl, and dialkyl alcohol compounds^A

Finally, we were interested in photocatalytic C–N multiple bond formation reactions (Table 2). The reaction of benzyl alcohol and aniline was chosen to optimise the reaction conditions (Table S8, Supplementary Material). Imines 5 were obtained in good yields under very mild conditions at room temperature. A notable tolerance for functional group was again observed without the use of additives or sacrificial electron donors. Methyl, methoxy, halide, and hydroxy-substituted benzyl alcohols were well tolerated. In addition, we varied the amine component and found the tolerance for methyl, halogen, and methoxy substituents. We analysed the gas atmosphere to quantify the amount of hydrogen released for selected examples (Table S9, Supplementary Material). Again, no molecular hydrogen and a decreased yield of imine were observed when conducting the C–N bond formation without argon atmosphere. Amines formed via hydrogenation of corresponding imines by the hydrogen liberated were not detected.

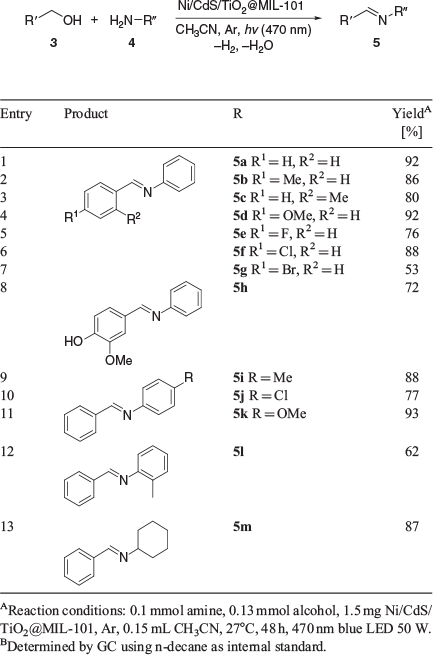

Table 2.  Photocatalytic synthesis of imines from primary alcohols and amines^A

In conclusion, we introduced photocatalytic C–N multiple bond formation under visible light illumination by coupling activated carbonyl compounds with amines. The reusable, noble metal-free photocatalyst Ni/CdS/TiO₂@MIL-101 permits quantitative hydrogen generation from alcohols (alcohol splitting) under very mild conditions, inert gas atmosphere, and without the requirement of sacrificial electron donors. The photocatalyst is composed of a CdS/TiO₂ heterojunction with co-catalytic Ni nanoparticles assembled on the MOF MIL-101 as a colloidal porous support. We observed a broad substrate scope with very good tolerance of functional groups and high selectivity. We believe that our reusable photocatalyst represents a valuable platform for a variety of photocatalytic C–N or C–C bond formation reactions which involve the dehydrogenation of alcohols and condensation reaction(s) as key steps.

Details of the theoretical procedures, general methods, material synthesis and characterisation, and the general procedure for photocatalytic experiments and screening reactions are available on the Journal’s website.

The authors declare no conflicts of interests.
