Electrophilic fragment screening using native mass spectrometry to identify covalent probes for surface cysteines

Introduction

Covalent small molecule drugs form a covalent bond with a target protein of interest to elicit the desired therapeutic response. Their chemical structure comprises a mildly reactive electrophilic warhead that forms a covalent bond with specific nucleophilic amino acid residues of the protein target.¹ Although milestones in covalent drug discovery and development span more than one century, the modern trend in medicinal chemistry is toward rationally designed covalent drugs in place of serendipitous discovery.^1,2 This more deliberate approach has been accompanied by a striking increase in the number of FDA approved covalent drugs since 2010.¹ This trend is underpinned by the multiple benefits provided by covalent drugs, including high potency and selectivity, low off-target effects and lower dosage. Covalent drugs also provide opportunities to target proteins considered undruggable, particularly those with rare or non-conserved nucleophilic amino acid residues.^1,3 This is embodied by approval of Sotorasib in 2021 and Adagrasib in 2022, covalent drugs respectively comprising an acrylamide and 2-fluoroacrylamide warhead that selectively target the reactive Cys12 of KRAS(G12C). This cancer-specific mutant isoform had remained undruggable despite decades of conventional drug discovery efforts.^4–8 Additional recently approved covalent drugs that selectively target cysteine residues include Nirmatrelvir and Ritlecitinib. Nirmatrelvir comprises a nitrile warhead and is an inhibitor of the main protease from SARS-CoV2 (by Cys145) that was approved by the FDA for emergency use treating COVID-19 in 2021.^1,9 Ritlecitinib, comprises an acrylamide warhead that selectively targets JAK3 (by Cys909) and the equivalent cysteine residue in TEC kinases and was first approved by the FDA in 2023 for the treatment of severe alopecia areata.^10,11

Contemporary approaches in covalent drug discovery proceed through either a ligand-first approach, where incorporating covalency into a known reversible ligand is pursued, or an electrophile-first approach, where screening commercial or proprietary electrophilic compound libraries (comprising fragments or lead-like molecules) is employed to identify a novel covalent ligand ‘hit’, often without structural bias.¹ Indeed, the electrophile-first approach was employed in the development of Sotorasib, starting with covalent fragments.^4–6 Fragments are molecules, typically <300 Da in molecular weight, that are not only good starting points for the hit-to-lead stage of drug development but also as chemical probes or tool compounds that are used to study the biology of a protein of interest, particularly where the protein is unligandable or ligands are unavailable, limited or suboptimal.¹² The growing interest in covalent inhibitors and covalent chemical probes requires robust technologies for the identification and characterisation of covalent fragment hits. Covalent binders impart different practical considerations for screening when compared to noncovalent binders and there is a need for methods to characterise direct target engagement. Herein, we demonstrate the application of native mass spectrometry (nMS) for covalent fragment screening. Our method provides a workflow that can assess protein binding, protein specificity and identification of the site of protein modification (utilising mutant proteins). We also demonstrate that nMS can measure the simultaneous binding of a protein to a classical active site noncovalent ligand and a covalent fragment – an outcome not possible with denaturing MS methods.

Intact denatured mass analysis has been used for electrophilic fragment screening across different human and pathogen protein target classes, including proteases and kinases.^1,13–15 Following incubation of the protein of interest with a fragment (either a single fragment or fragment pools), the secondary, tertiary and any quaternary structures of a protein are disrupted prior to acquisition of a mass spectrum of the denatured protein. Covalent fragment binding is identified by the mass information in modified versus unmodified protein peaks in the deconvoluted mass spectrum.¹⁶ By contrast, nMS maintains the protein structure by using sample and MS instrument parameters that preserve the protein’s native-like folded structure and is established for noncovalent fragment screening (reviewed in Sternicki and Poulsen^17,18 and Poulsen¹⁹). Covalent fragment binding may be determined directly from the simpler nMS raw data (as there are much fewer charge states than for denatured proteins) by the difference in the higher m/z value for the modified protein compared to the lower m/z value for the unmodified protein,^20,21 or deconvoluted in the same way as intact denatured MS (Fig. 1). Covalent fragment binding is unambiguous with both approaches as the covalent bond remains intact and quantitative binding analysis is possible. The signal intensities for the unmodified and covalent ligand-modified protein peaks are likely to be an accurate reflection of the solution-based concentrations, due to similar MS response factors.^22–26 Although the methods can identify multiple covalent modifications (e.g. multiple binding of the same fragment at different sites or binding of different fragments from a pool), only nMS provides the opportunity to identify noncovalent ligand binding. This is powerful as it enables simultaneous binding of orthosteric inhibitors and covalent ligands to be measured, providing important details to better guide development. It may also identify fragments where there is structural complementarity to the target protein but where an adjustment to the covalent warhead is needed to optimise covalent bond formation. We therefore sought to establish nMS as a robust new method to screen electrophilic fragment libraries.

Fig. 1.

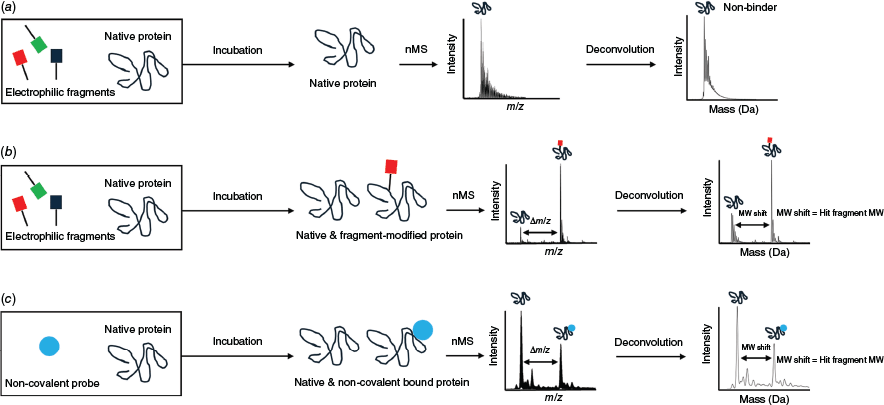

Native mass spectrometry (nMS) workflow for electrophilic fragment screening of pooled fragments against a protein of interest. (a) With no covalent fragment binding, the mass spectrum is unchanged. With covalent binding (b) or noncovalent binding (c) of a fragment, an additional peak corresponding to the mass of the protein plus that fragment is observed. For (b) and (c), the mass difference between the protein only and protein-fragment peaks (labelled Δm/z for raw mass spectrum or molecular weight, MW, shift for deconvoluted mass spectrum) allows identification of the fragment, with fragment mass as proxy for fragment identity calculated using MW = Δm/z × z.

Results and discussion

Carbonic anhydrases (CA, EC 4.2.1.1) catalyse the reversible hydration of carbon dioxide to give bicarbonate and a proton, playing an important pH regulatory role in health and disease.²⁷ In humans, there are 12 catalytically active isozymes, with CA III the least active (k_cat 1.3 × 10⁴ s⁻¹) and the least studied.²⁸ CA III is, however, implicated to play a role in various diseases, including cancer and has an intriguing antioxidant function in cells by providing protection against cellular oxidative stress conditions.^29,30 The three-dimensional protein fold of CA III is highly similar to the fold of CA II, the most active CA isozyme (k_cat 1.4 × 10⁶ s⁻¹),²⁸ with CA II and CA III sharing 62% sequence homology (see Fig. 2, 3 and S1).³¹ Although cysteine is one of the least abundant amino acids in proteins (1.9% abundance),³² its presence can signify an important functional role.^32,33 CA III has five cysteine residues (C66, C182, C187, C202 and C205, Fig. 3 and S1), with structural studies showing that two are localised on the protein surface (C182 and C187, Fig. 2) and experience redox-regulated modifications, including glutathionylation,³⁴ which helps protect cells from oxidative stress.²⁹ There are currently no ligands that target these two cysteines which enable researchers to better understand the function of CA III or its potential as a therapeutic target,³⁴ with site-directed mutagenesis the only available method to study them. The reported human CA III crystal structures (PDB IDs: 1Z93, 1Z97, 2HFW, 3UYN and 3UYQ) have C182 and C187 mutated to serine residues to assist crystallisation (our attempts to crystallise CA III without these mutations were not successful, data not shown). To the best of our knowledge, CA proteins have not been intentionally screened against electrophilic fragments that target cysteine using nMS; however, covalent binding to CA I and CA II has been reported when screening small molecule libraries.^35,36 We thus sought to develop an electrophilic fragment screening method using nMS to identify selective binders for C182 or C187 in CA III. CA II has one cysteine (C205), a buried residue also found in CA III, providing a protein control for counter-screening to support the discovery of specific and selective covalent probes for the surface cysteine residues of CA III. Although not in the scope of this study, the CA isoform sequence alignment shows that mitochondrial CA VB has cysteine residues that align with C182 and C187 of CA III, mitochondrial CA VA has a cysteine residue that aligns with C187, and CA VII has a cysteine residue that aligns with C182. CA VII is reported to have a protective role against oxidative damage³⁷ but there is no reported information on the role of these cysteines in the two mitochondrial CAs (CA VA and VB).

Fig. 2.

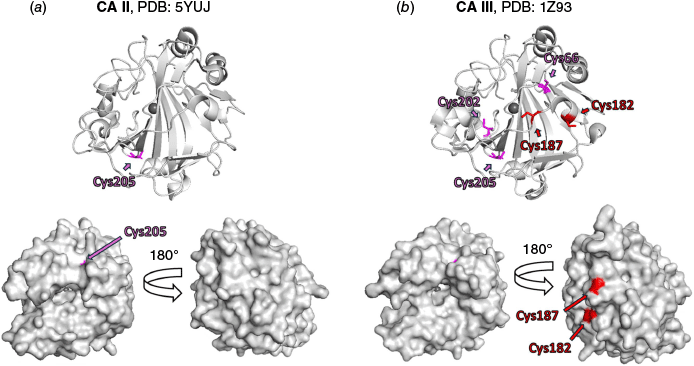

Comparison of protein X-ray crystal structures of (a) CA II (PDB 5YUJ), and (b) double mutant CA III (PDB 1Z93, C182S and C187S). CA III contains three buried cysteines (C66, C202 and C205) and CA II contains one buried cysteine (C205), highlighted in pink; the relative per residue solvent accessibility surface area is 0%, calculated using PyMoL (ver. 1.8, Schrodinger LLC, see https://www.pymol.org/). CA III contains two predicted surface exposed cysteines (C182 and C187) highlighted in red; the relative per residue solvent accessibility is respectively 29 and 25%, calculated using PyMoL. For ease of representation, the double mutant Ser residues of (b) are labelled Cys. The figures were prepared using PyMol.

Fig. 3.

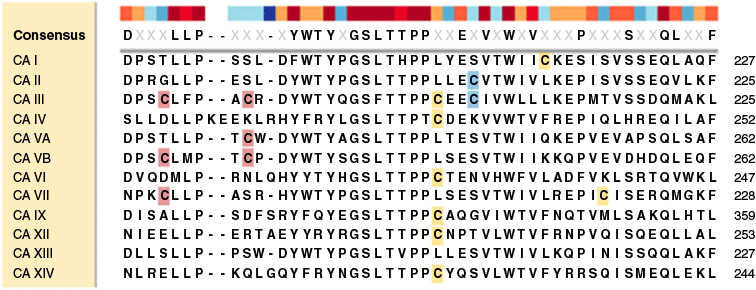

Alignment of the amino acid sequences of catalytically active human carbonic anhydrase (CA) enzymes, focusing on the surface cysteine-containing sequence region. The two surface-exposed cysteine residues in CA III (C182 and C187) and the corresponding aligned cysteines in other CA isoforms are highlighted in red. The buried cysteine residue (C205) in both CA II and CA III is highlighted in blue. Other cysteine residues are highlighted in yellow. The human CA sequences used are CA I: NP_001122303.1, CA II: NP_000058.1, CA III: NP_005172.1, CA IV: NP_000708.1, CA VA: NP_001730.1, CA VB: NP_009151.1, CA VI: NP_001206.2, CA VII: NP_005173.1, CA IX: NP_001207.2, CA XII: NP_001209.1, CA XIII: NP_940986.1 and CA XIV: NP_036245.1, with alignment performed using the MUSCLE (MUltiple Sequence Comparison by Log-Expectation) algorithm in Snapgene.

The Electrophilic Covalent Probes library (960 compounds), supplied by Enamine and co-developed by the Weizmann Institute of Science and XChem group at Diamond Light Source,¹³ is curated toward the discovery of specific ligands for cysteine-containing proteins. The library comprises cysteine-reactive acrylamide (~24%) and chloroacetamide (~76%) warheads on the fragments, with the expected covalent modification reactions shown in Fig. 4a, b respectively. Thiol-reactivity against 10 cysteine-containing proteins was evaluated during library development¹³ and the library has since been screened with other targets.³⁸ We employed nMS to screen this electrophilic fragment library (4 equiv) against wildtype (WT) CA III. N-Ethylmaleimide (NEM), a promiscuous alkylating reagent for protein thiol moieties at pH 6.5–7.5 (Fig. 4d) was employed as a positive control (4 equiv), whereas DMSO was employed as a negative control. Covalent ligand binding was identified as previously described by us.²⁰ NEM was observed to covalently modify two sites of WT CA III (presumably the surface exposed cysteines C182 and C187) with rapid binding of the first ligand and binding of the second ligand increasing in a time dependent manner (18.1% at 1 h, 28.7% at 4 h and 43.5% at 16 h, data not shown). Where putative hit fragments were identified or where data were ambiguous, the fragments were subjected to a secondary screen. Twelve fragments 1–12 were confirmed as covalent binders of WT CA III (1.25% hit rate) (Fig. 5a) each with one ligand bound to the protein. With respect to quality control of the electrophilic fragment library, there were ~1.7% of samples assessed as ‘bad wells’ in the primary nMS screen, where binding to WT CA III was observed but the mass of the modified protein was inconsistent with the fragments’ chemical structure, indicative of potential degradation of fragments or impurities.

Fig. 4.

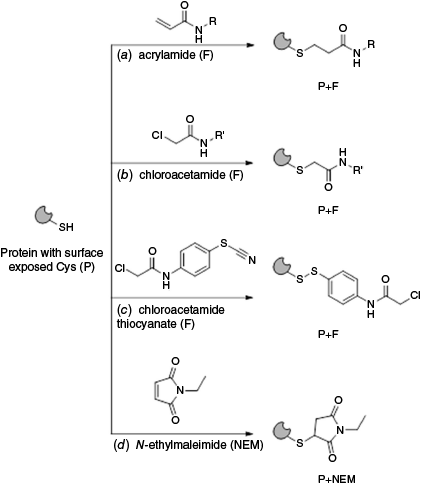

Covalent modification of protein surface thiols with cysteine directed electrophilic fragments (F) comprising (a) acrylamide and (b) chloroacetamide covalent warheads. (c) A putative covalent modification of protein thiol with dual thiocyanate–chloroacetamide fragment (F). (d) Covalent protein modification with promiscuous cysteine alkylating reagent, N-ethyl maleimide (NEM).

Fig. 5.

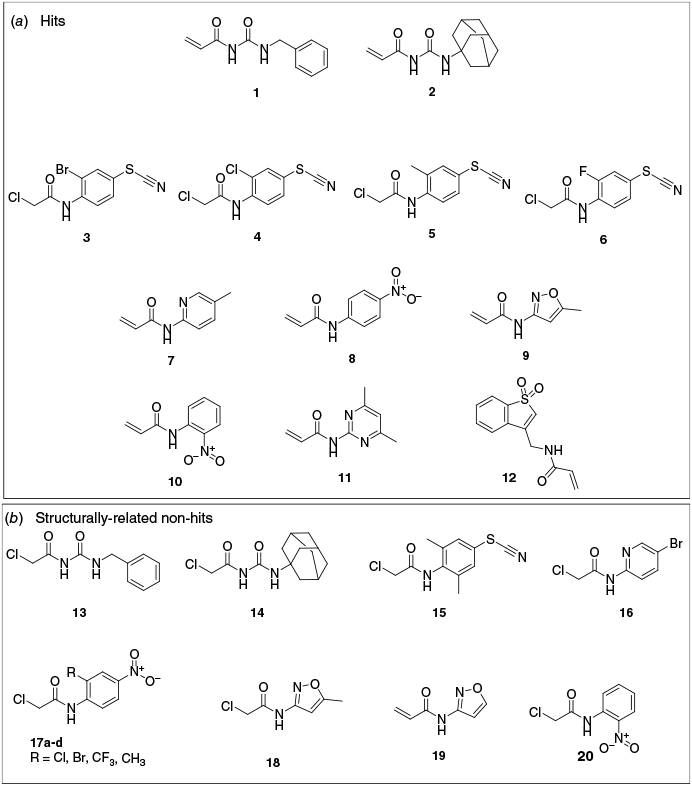

(a) Structure of confirmed electrophilic fragments 1–12 that bound covalently to WT CA III using nMS. (b) Structure of non-binding hit analogues 13–20 identified by cross referencing hits against the complete fragment library.

Hit fragments for WT CA III comprised three pharmacophores: (i) acrylamides with a urea functionality and a bulky hydrophobic group (1 benzyl, 54.5% bound and 2 adamantyl, 44.0% bound); (ii) chloroacetamides with substituted phenyl thiocyanates (3 bromo, 29.9% bound; 4 chloro, 31.9% bound; 5 methyl, 25.9% bound and 6 fluoro, 19.9% bound); and (iii) heteroaromatic acrylamides 7–12 (11.5–26.8% bound) (Fig. 5a, S2, and Tables 1, S1 and S2). All hits bound as a single adduct, modifying only one cysteine residue (i.e. no double labelling as for NEM). The 12 hits are inclusive of all fragments that labelled CA III to any measurable extent (i.e. there was no minimum percentage labelling threshold applied) and that also met the following criteria: (1) hit fragment from nMS screening in pools (of four fragments) was validated and confirmed as a hit when re-screening as a single compound; (2) the measured mass shift for the hit fragment was consistent with the mass shift expected for covalent binding to the warheads or isothiocyanate moiety. Hits 1, 2 and 7–12 bound with the expected mass for covalent addition of the acrylamide fragment (i.e. mass shift equal to the fragment molecular weight, MW), with covalent binding confirmed by adjustment of MS parameters that are expected to disrupt noncovalent binders (FT-ICR MS skimmer 1 voltage increased from 30 to 120 V, UHMR MS desolvation voltage increased from −15 to −50 V) (Supplementary Fig. S3). Fragments 3–6 did not bind with the expected mass loss for a chloroacetamide (−36.5 Da) but instead with a 26-Da loss that was attributed to a putative reaction of the thiocyanate moiety of 3–6 with a cysteine thiol to form a disulfide (Fig. 4c). Only a single adduct with a mass shift of −26 Da was observed for fragments 3−6, suggesting a high specificity (>99%) for electrophilic reactivity from the isothiocyanate moiety over the chloroacetamide warhead. Although further investigation would be required to confirm this hypothesis, there is literature precedent for the thiocyanate–thiol reaction that contrasts with the covalent-reversible reaction of the isothiocyanate warhead (which reacts by the carbon centre with protein thiol groups).^39,40 The two‐step mechanism of covalent binding, whereby the fragment initially binds to the target reversibly (mediated by noncovalent and specific interactions between the fragment and protein binding site) and then the binding conformation of the fragment directs the electrophilic warhead (in this case the thiocyanate) to react covalently with a proximal cysteine, suggests this alternative reaction mechanism is feasable.^41,42

To assess hit selectivity for the CA III isoform, compounds 1–12 and NEM (control) were counter-screened against CA II (one buried cysteine, no surface cysteines). No binding to CA II was observed, indicating the hits were specific for surface exposed cysteines of CA III (Table 1). We also cross referenced hits 1–12 against the structures of the full fragment library and although all fragments in the library have an innate capacity to covalently modify cysteine, there was selectivity of the hit ligands 1–12 compared to the structurally related analogues 13–20 (Fig. 5b). This further supports a mechanism where noncovalent molecular interactions are a precursor for directing the fragment electrophile for specific covalent modification.⁴² Lastly to assess for off target protein promiscuous binding, we cross referenced hits 1–12 with the reported results for electrophilic fragment screening against the 10 cysteine containing proteins that guided the library’s development (Supplementary Table S3).¹³ We found that acrylamides 1 and 2 covalently modify the cysteines of at least three proteins including KRAS(G12C) (79 and 26% bound respectively), NUDT7 (35 and 79% bound respectively), NV3CP (hit 1 30% bound) and PBP(R504C) (hit 2 19% bound). The dual thiocyanate chloroacetamides 3–6 covalently modified one different protein each (hit 3 KRAS(G12C) 9% bound; hit 4 NNMT 38% bound; hit 5 PBP(R504C) 11% bound; hit 6 OTUB2 9% bound); however, data to assess if binding is by the thiocyanate moiety as we observed are not available. Heterocyclic acrylamide hits 7–12 covalently modified between two and four of the panel of 10 proteins tested (Supplementary Table S3). The promiscuity of the reactivity of hits 1–12 for these off target proteins was surprising given the library was described to have removed compounds found to be promiscuous binders (defined as those that label two or more proteins by >50% or three or more proteins by >30%) or highly reactive, in the screening of those 10 proteins.⁴³ An alternative hypothesis is that the cysteines of those frequently hit proteins are too reactive to be specifically targeted with electrophilic fragments.

To identify the reactive cysteine of WT CA III we prepared three mutant CA III proteins (C182S, C187S, CDS, with both C182 and C187 as serine) that encompass the possible combinations of surface exposed cysteine residues mutated to serine. We then assessed NEM and fragment hits 1–12 (4 equiv, 16 h) for covalent binding using nMS (Tables 2, T1 and T2, Supplementary Fig. S4 and S5). NEM modified WT CA III (up to two NEM bound), C182S and C187S (with one NEM ligand bound) but did not modify CDS. This NEM binding data is consistent with the expected covalent modification of both surface exposed cysteines (C182 and C187) of WT CA III and no modification of the three buried cysteines (C66, C202 and C205). The fragment hits 1 and 2 covalently modified only WT CA III and C182S, providing evidence that C187 is selectively modified by these urea functionalised acrylamide fragments (with C182 unmodified) (Table 2). Similarly, heteroaromatic acrylamide hits 7–12 covalently modified only WT CA III and C182S, further evidence of selective modification of C187 only (Table 2). Although the dual thiocyanate–chloroacetamide fragments 3–6 did not modify CDS, they behaved differently towards the other mutants; specifically, fragments 3 and 5 covalently modified WT CA III, C182S and C187S (to a lesser extent), indicating these fragments could modify both surface cysteines through the thiocyanate moiety. By contrast, the dual thiocyanate chloroacetamide hits 4 and 6 covalently modified only WT CA III and C182S, indicative of a preference for modification of C187. In summary, all hits covalently and preferentially modified C187 over C182, with only two hits (3 and 5) modifying both C187 and C182, although C182 modification was to a much lesser extent.

To assess the ability of nMS to bind with acetazolamide (2 equiv), a high affinity noncovalent binder of the CA II and CA III active sites,²⁰ samples were incubated for 30 min and nMS data acquired (Table 3). The two proteins bound to acetazolamide at a similar level (34.5–37.5% binding), demonstrating that the active site architecture was similar even though the surface cysteine profile was different. Next, to assess the ability of nMS to identify simultaneous noncovalent orthosteric binding with acetazolamide and covalent binding with the electrophilic fragments, the proteins were incubated with NEM (4 equiv) as a positive control or a representative covalent hit (fragment 2, 4 equiv, 16 h), followed by incubation with acetazolamide (2 equiv, 30 min). Simultaneous binding of NEM and acetazolamide was observed for WT CA III (2× NEM bound) and mutants C182S (1× NEM bound) and C187S (1× NEM bound), but not mutant CDS (Tables 3, S4 and S5, and Supplementary Fig. S6 and S7). Simultaneous binding of 2 and acetazolamide was observed for WT CA III (1× 2 bound) and mutant C182S (1× 2 bound), but not for mutant C187S or CDS (Tables 3, S4 and S5, and Fig. 6, S8). Collectively, this provides evidence that both C187 and C182 may be modified by nonspecific alkylation with NEM but that there is specific covalent modification of C187 over C182 with the electrophilic fragment 2. It also confirms that the covalent protein modifications do not affect orthosteric binding of acetazolamide. Additionally, as expected, CA II did not bind NEM or the electrophilic fragment 2 and bound only to acetazolamide (Table 3).

Table 3.Simultaneous binding of electrophilic ligands (NEM or 2, 4 equiv) and noncovalent active site binder (acetazolamide (AZA), 2 equiv) to proteins (P): WT CA III, three mutant CA III proteins (C182S, C187S and CDS) and WT CA II, measured by nMS (UHMR MS).

	Percentage P binding			Percentage P binding				Percentage P binding
	Control samples			With combined NEM and AZA				With combined 2 and AZA
Protein (P)	AZA	NEM	2	Unbound	AZA	NEM	NEM + AZA	Unbound	AZA	2	2 + AZA
WT CA III	34.5	94.9	40.7	0	0	43.6	23.9	42.3	16.5	25.1	16.1
CA III C182S	35.1	100	45.4	0	10.9	60.4	28.7	41.8	13.9	28.3	16.0
CA III C187S	35.5	60.8	0	25.5	21.0	33.3	19.8	63.1	36.9	0	0
CA III CDS	37.5	0	0	66.2	33.8	0	0	64.1	35.9	0	0
WT CA II	36.0	0	0	45.2	54.8	0	0	47.9	52.1	0	0

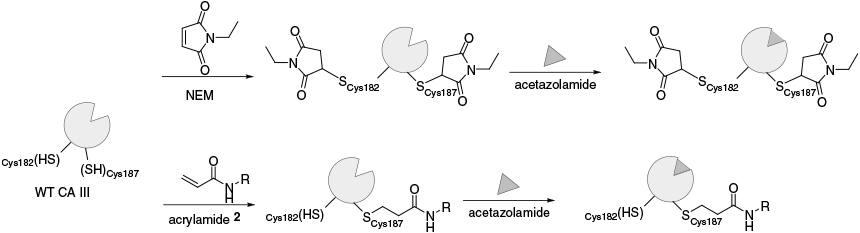

Scheme is representative of the analyses. NEM and NEM+AZA binding percentage includes the sum of the single and double labelled binding for WT CA III (i.e. both one and two cysteines covalently modified).

Fig. 6.

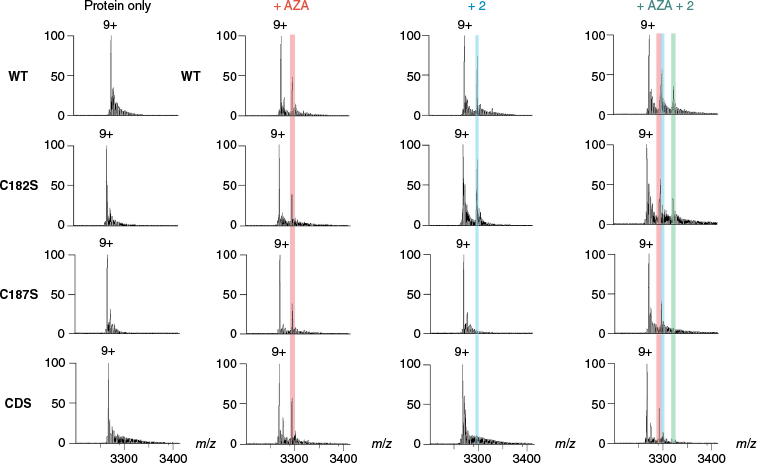

nMS assessment (UHMR MS) of simultaneous orthosteric (noncovalent) binding and covalent binding of electrophilic fragment 2 to WT CA III and three CA III mutants (C182S, C187S and CDS). Acetazolamide (AZA) is a noncovalent active site binder of CA III.

Conclusion

Electrophilic fragments are an important class of fragments that form a covalent bond with protein targets, providing powerful tools that may be developed as chemical probes to explore the biology of targets. This is particularly relevant for target validation (or off-target identification) and as starting points for drug discovery programmes. In this study, we developed a new screening method using nMS to efficiently identify electrophilic fragment hits, identifying 12 selective electrophilic fragments for CA III across three pharmacophores. This is important as there is a lack of high-quality and specific chemical tools for CA III, providing a barrier to establishing the biological role(s) of this enzyme. Using nMS with mutant CA III proteins, we determined that C187 is the preferred site of fragment modification of the two possible surface cysteines (C182, C187). This finding will allow the attention of future efforts to understand the biology of CA III to focus on targeting C187 for hit-to-lead development. Additionally, the conserved homology of C187 with mitochondrial CAs VA and VB may be investigated to identify cross-reactivity of the identified hit probes for these CAs. nMS provided the opportunity to assess simultaneous orthosteric (noncovalent) binding and covalent binding to CA III to assess the impact of covalent surface cysteine modification on active site binding, which is not possible with denaturing MS methods. This general capability of nMS could greatly expand the capacity to develop functional covalent chemical probes where quantitative concurrent binding information is important.

nMS samples are analysed directly from solution; there is no requirement for protein crystallisation or protein modification as is needed for alternative biophysical methods (e.g. X-ray crystallography, surface plasmon resonance). This is significant as there is a vast number of proteins that are too flexible or too dynamic to crystallise or that are not amenable to modification, as it interferes with function or structure. Furthermore, the nMS method could enable screening of electrophilic fragments at scale, with the stoichiometry and identity of fragments determined from mass data. As nMS is a target agnostic analytical method, we anticipate it will find broad applications in electrophilic chemical probe discovery and drug discovery for protein targets. Continued development of the nMS method may aid identification of novel functional cysteines and guide the discovery of chemical probes for those proteins. There is potential to elaborate the nMS method to alternative nucleophilic amino acids beyond cysteine, or alternative electrophilic warheads, enabling a comprehensive range of covalent chemistries available to modify proteins.

Experimental

Supplementary material

Supporting material includes representative nMS spectra for each identified hit pharmacophore; specificity binding to map the cysteine binding site of top hits against WT and mutant CA III (C182S, C187S, CDS); specificity, promiscuity and cell viability data for 1–12. Supplementary material is available online.
